$18,900.00

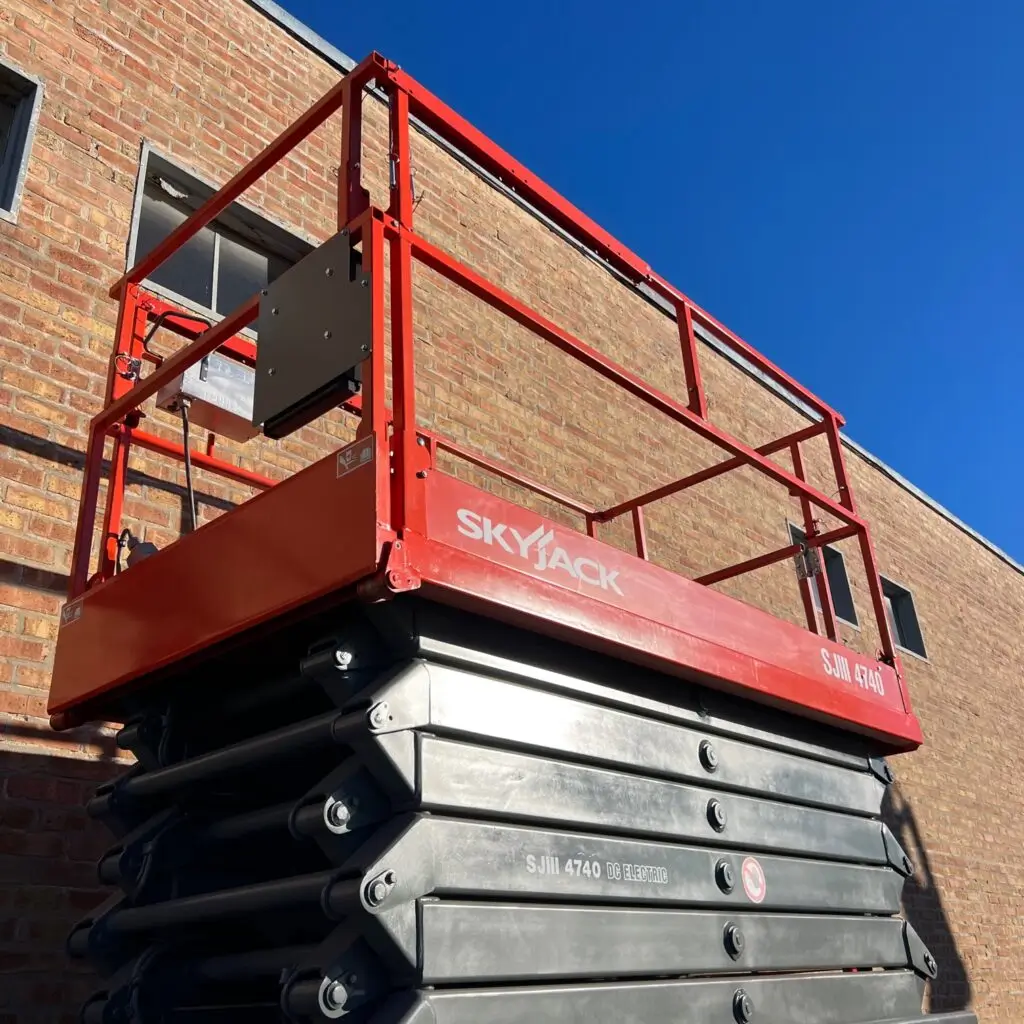

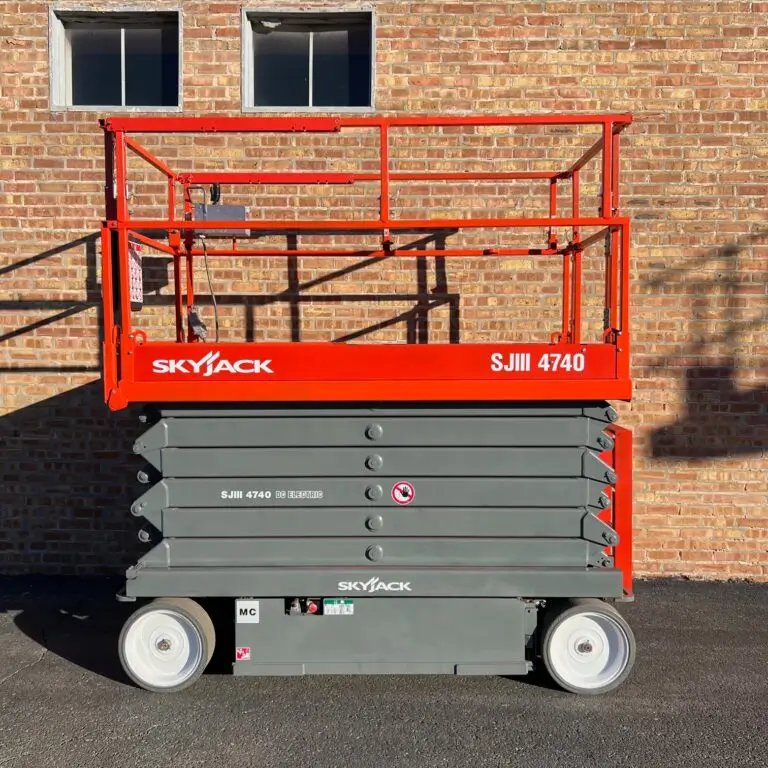

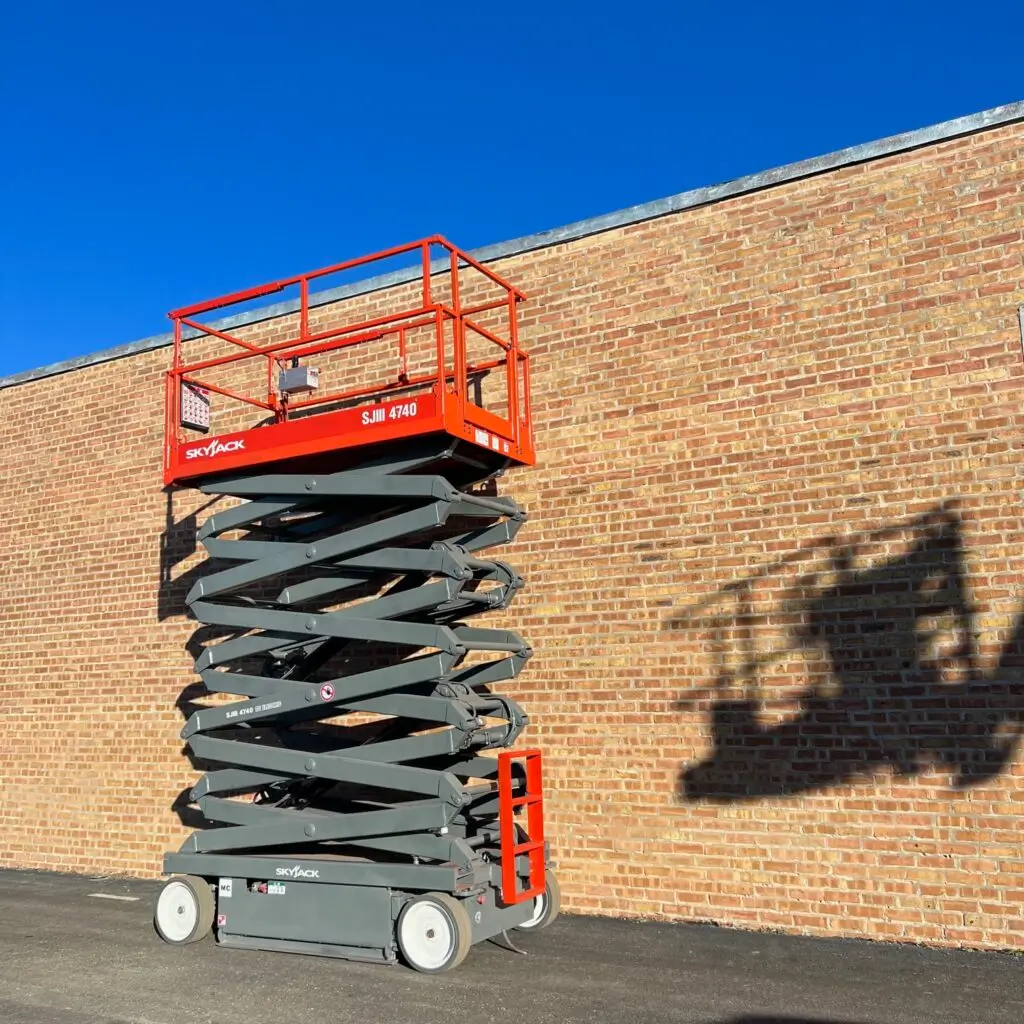

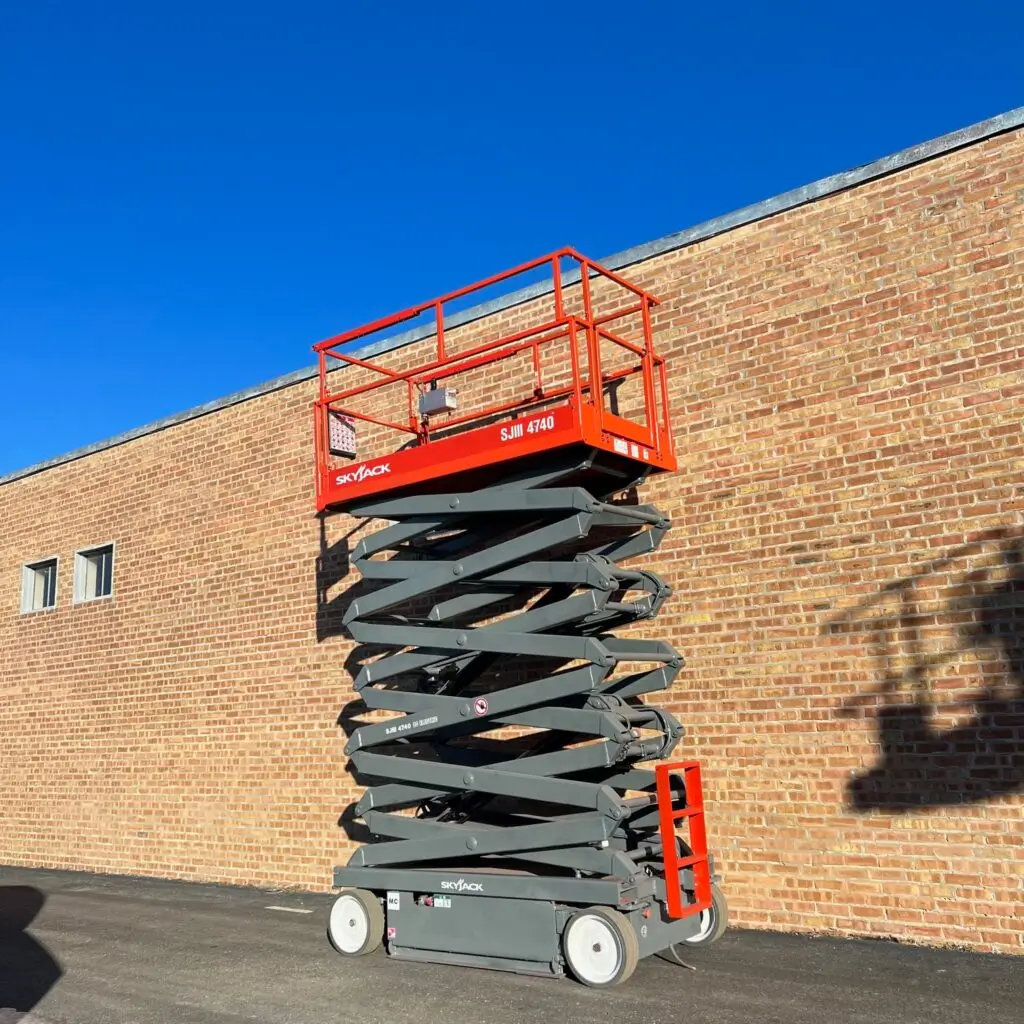

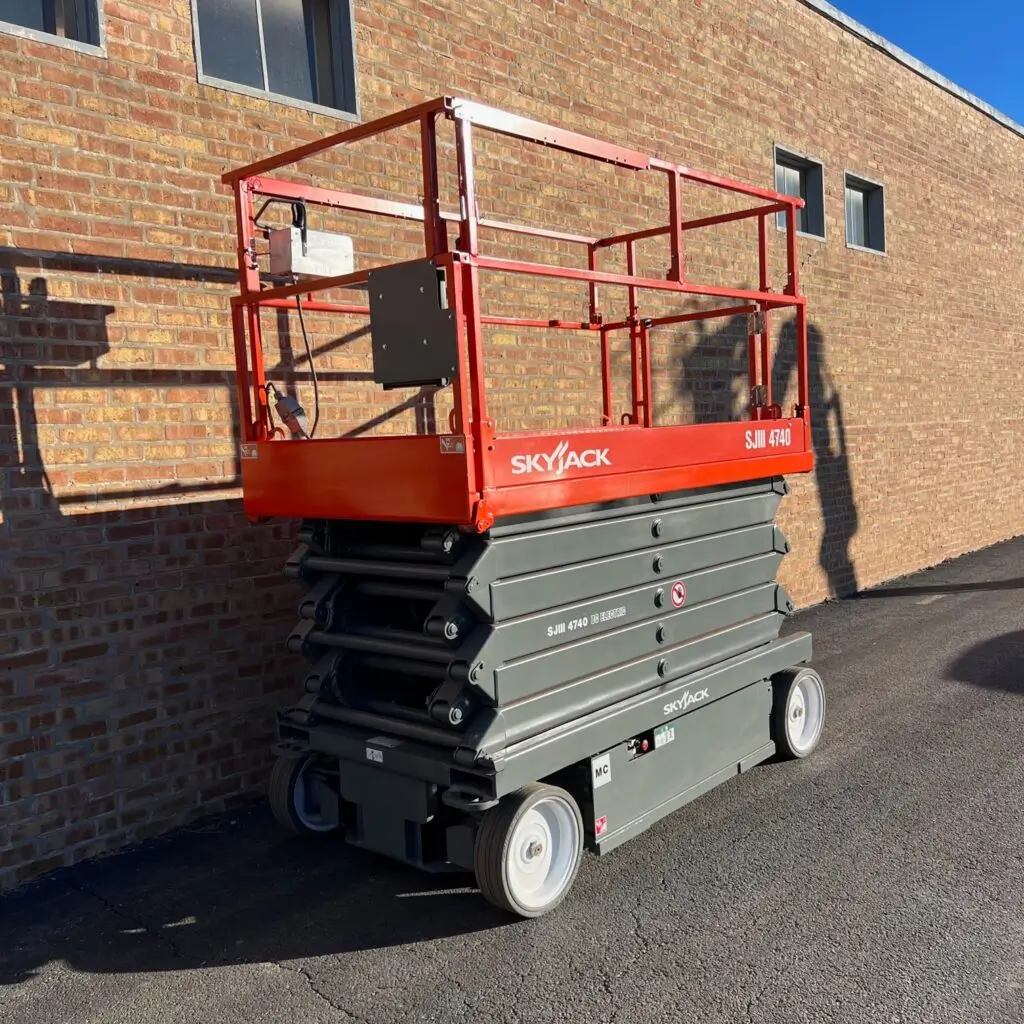

This 2018 fully refurbished Skyjack SJIII4740 electric scissor lift is a high-reach indoor access solution designed for commercial facilities, warehouses, and large interior workspaces. With its narrow frame and 40-foot lift height, the SJIII4740 provides exceptional vertical reach while maintaining maneuverability in tighter aisles. Each unit is refurbished to order at Win Win Equipment’s Addison, Illinois facility.
The Skyjack SJIII4740 is the tallest model in the narrow-frame SJIII scissor lift lineup, delivering 40 feet of platform height while retaining the compact footprint that allows it to navigate standard-width doorways and commercial corridors. This makes it one of the few narrow-frame electric scissor lifts capable of accessing high bay ceilings, elevated mechanical platforms, and overhead building systems at heights typically reserved for wider or rough-terrain machines.
Contractors working in distribution centers, airport terminals, large-format retail spaces, manufacturing plants, and convention facilities rely on the SJIII4740 when they need to reach 40 feet without the width penalty of a wide-platform model. The DC electric drive system keeps operation clean, quiet, and emission-free for fully enclosed environments.
The SJIII4740 shares Skyjack’s signature simple, reliable mechanical architecture with the rest of the SJIII series. Fewer electronic control modules and a straightforward hydraulic system mean easier field service, lower maintenance costs, and higher uptime — particularly important for rental fleets and high-use commercial applications.
All refurbished equipment is completed to order with a typical lead time of 2–3 weeks from the time of payment. Contact Win Win Equipment for pricing, custom refurbishment options, and nationwide delivery.
The Skyjack SJIII4740 is a popular 40-foot electric scissor lift engineered for indoor environments where additional working height is required without sacrificing maneuverability. Its narrow profile makes it well suited for maintenance teams and contractors operating in confined interior spaces.
Extension Deck (Roll Out) 3’ (0.91 m)
Ground Clearance (Pothole Raised) 4.5” (11.4 cm)
Ground Clearance (Pothole Deployed) 0.5” (1.3 cm)
Wheelbase 73” (1.85 m)
Weight 6,467 lbs (2,934 kg)
Gradeability 25%
Turning Radius (Inside) 17.5” (0.45 m)
Turning Radius (Outside) 99” (2.51 m)
Lift Time (With Rated Load) 68 sec
Lowered Time (With Rated Load) 41 sec
Drive Speed (Stowed) 1.9 mph (3.0 km/h)
Drive Speed (Raised) 0.5 mph (0.8 km/h)
Maximum Drive Height Full Height
Capacity (Overall) 770 lbs (349 kg)
Distributed Capacity (Main Platform) 505 lbs (229 kg)
Distributed Capacity (Extension Deck) 265 lbs (120 kg)
Local Floor Load (With Rated Load) 139 psi (956 kPa)
Overall Floor Load (With Rated Load) 233 psf (1,137 kg/m2)
Maximum # of persons at 0 mph (0 m/s) wind rating 3
Maximum # of persons up to 28 mph (12.5 m/s) wind rating 1 up to 24’ (7.32 m)
Tire Type Solid, N/M
Tire Size 16 x 5 x 12
This Skyjack SJIII4740 is fully refurbished to order at our facility in Addison, Illinois, and prepared for jobsite-ready use prior to delivery. Each refurbishment focuses on safe operation, mechanical reliability, and consistent electrical performance.
All refurbishment work is completed by our in-house technicians in Addison, IL. Additional refurbishment details and available options can be found on our full refurbishment program.
Standard refurbishment lead time is approximately 2–3 weeks from payment. Expedited timelines or alternate equipment options may be available upon request.
