$10,800.00

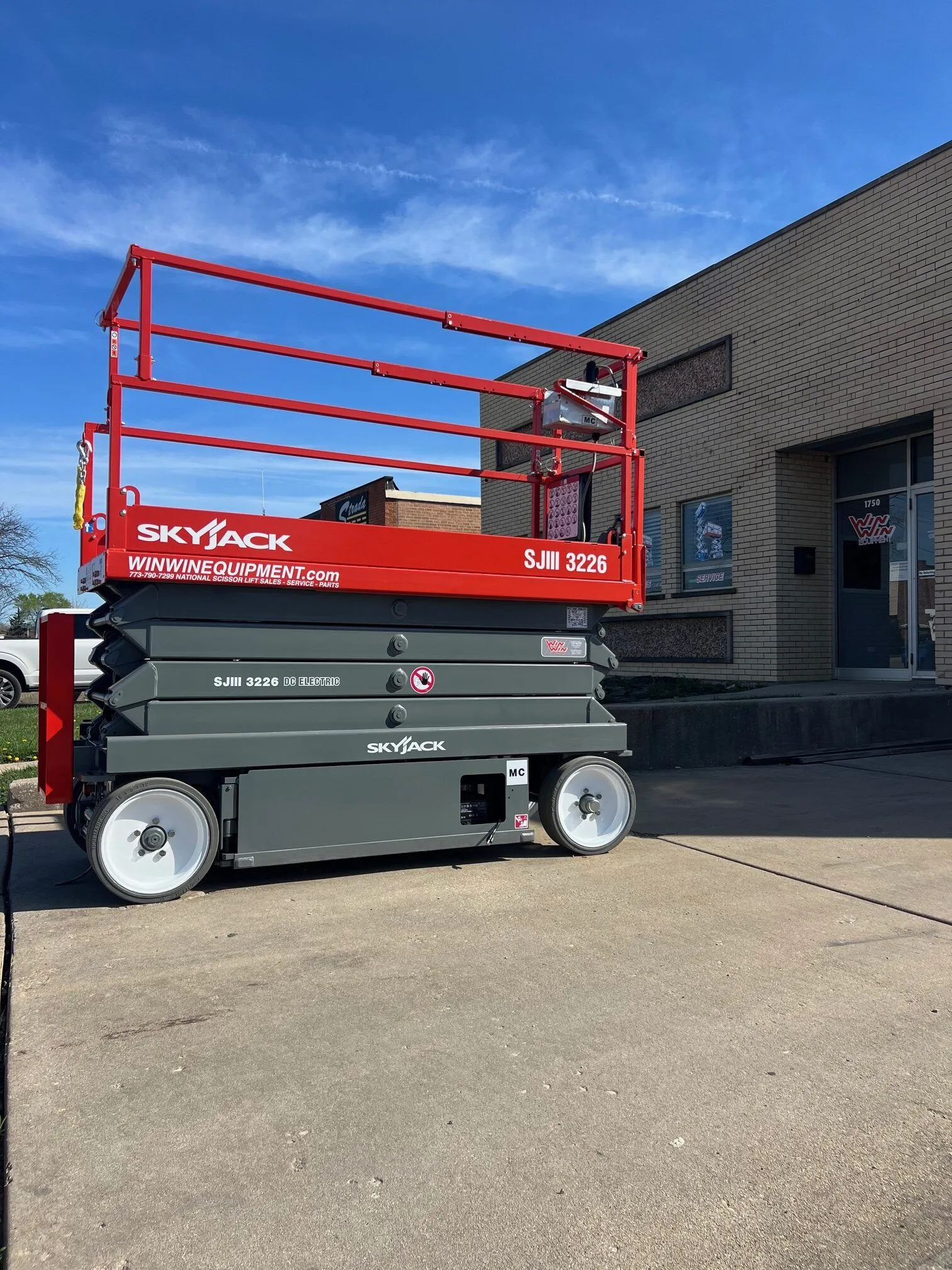

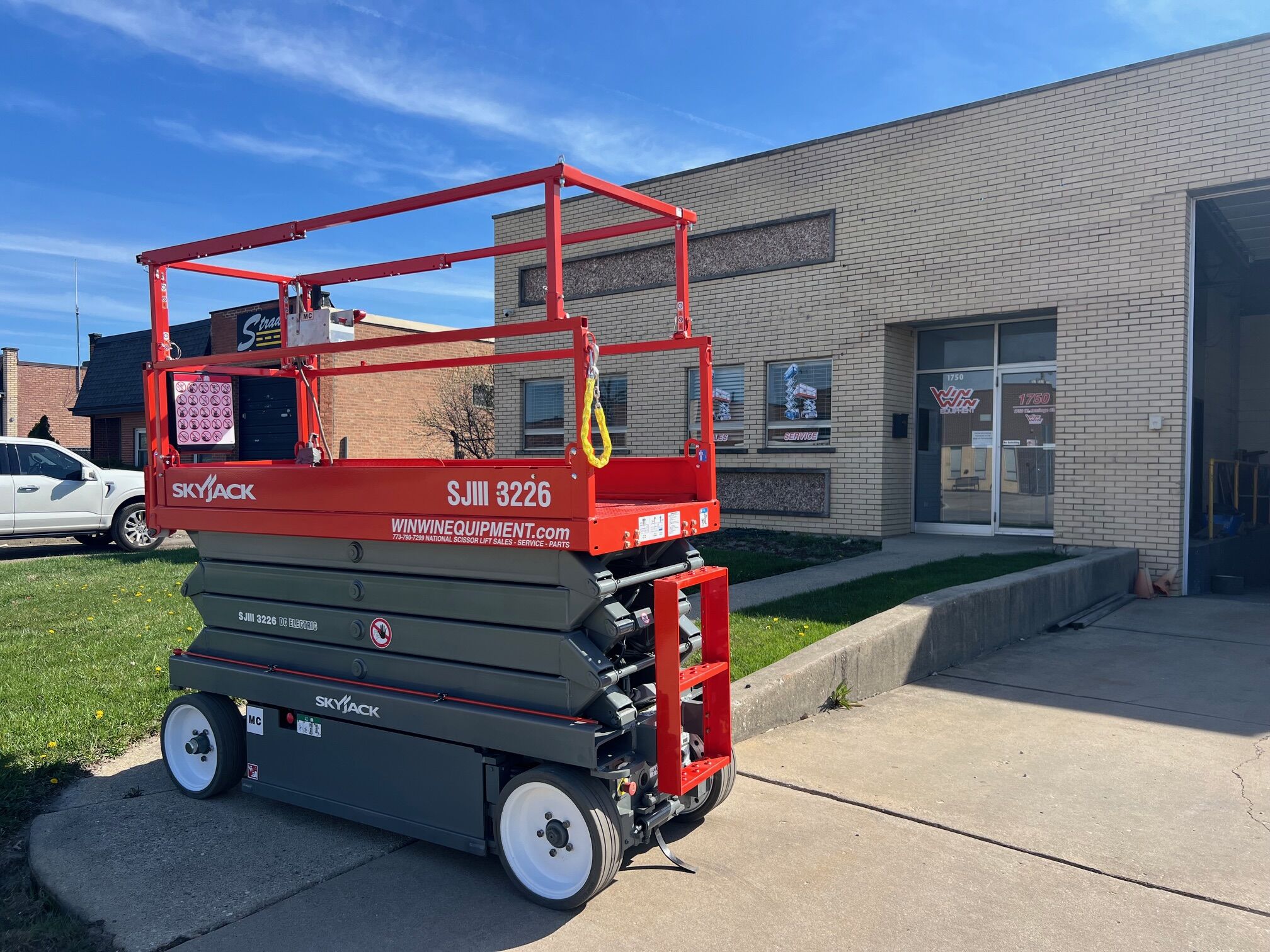

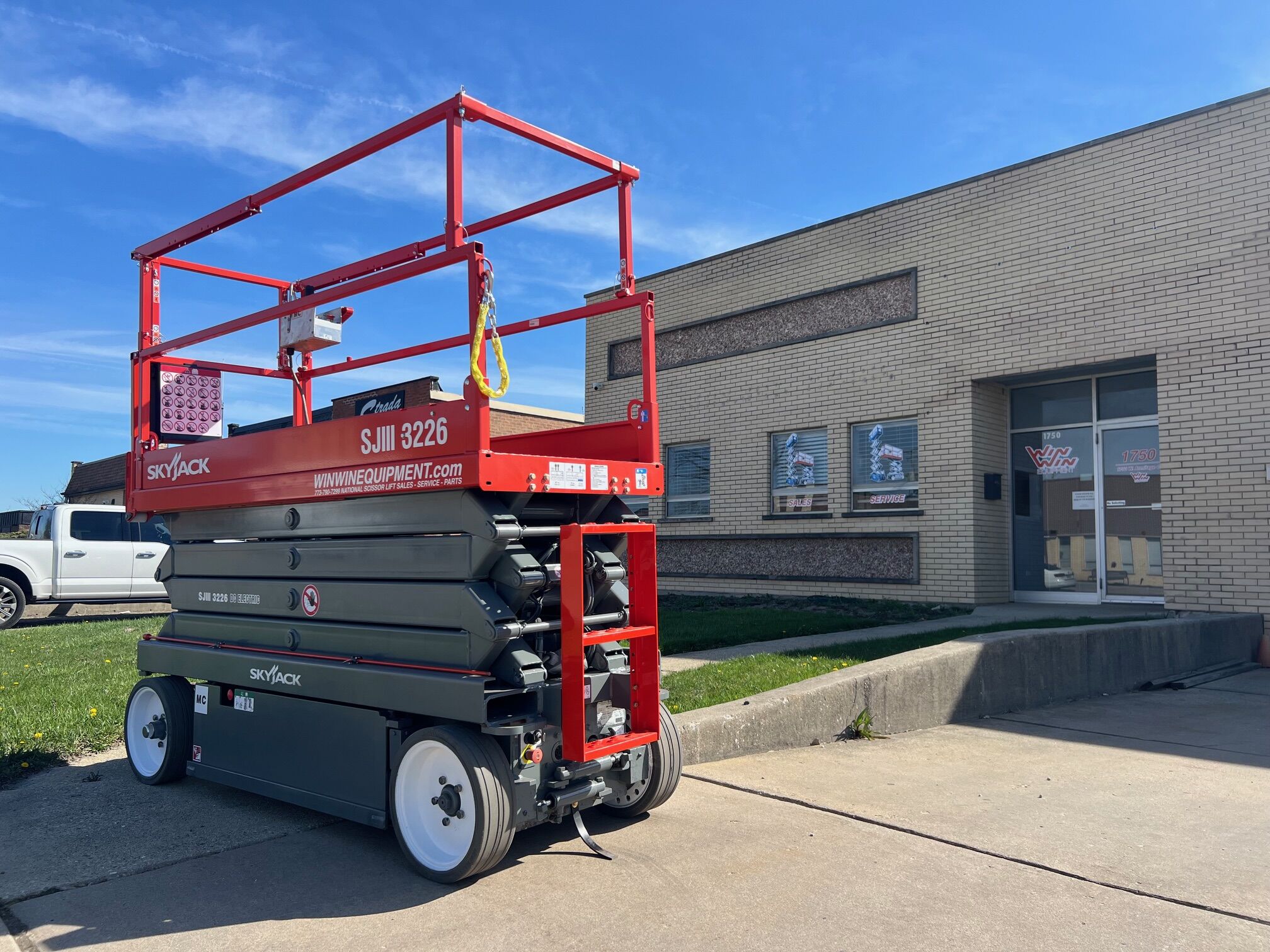

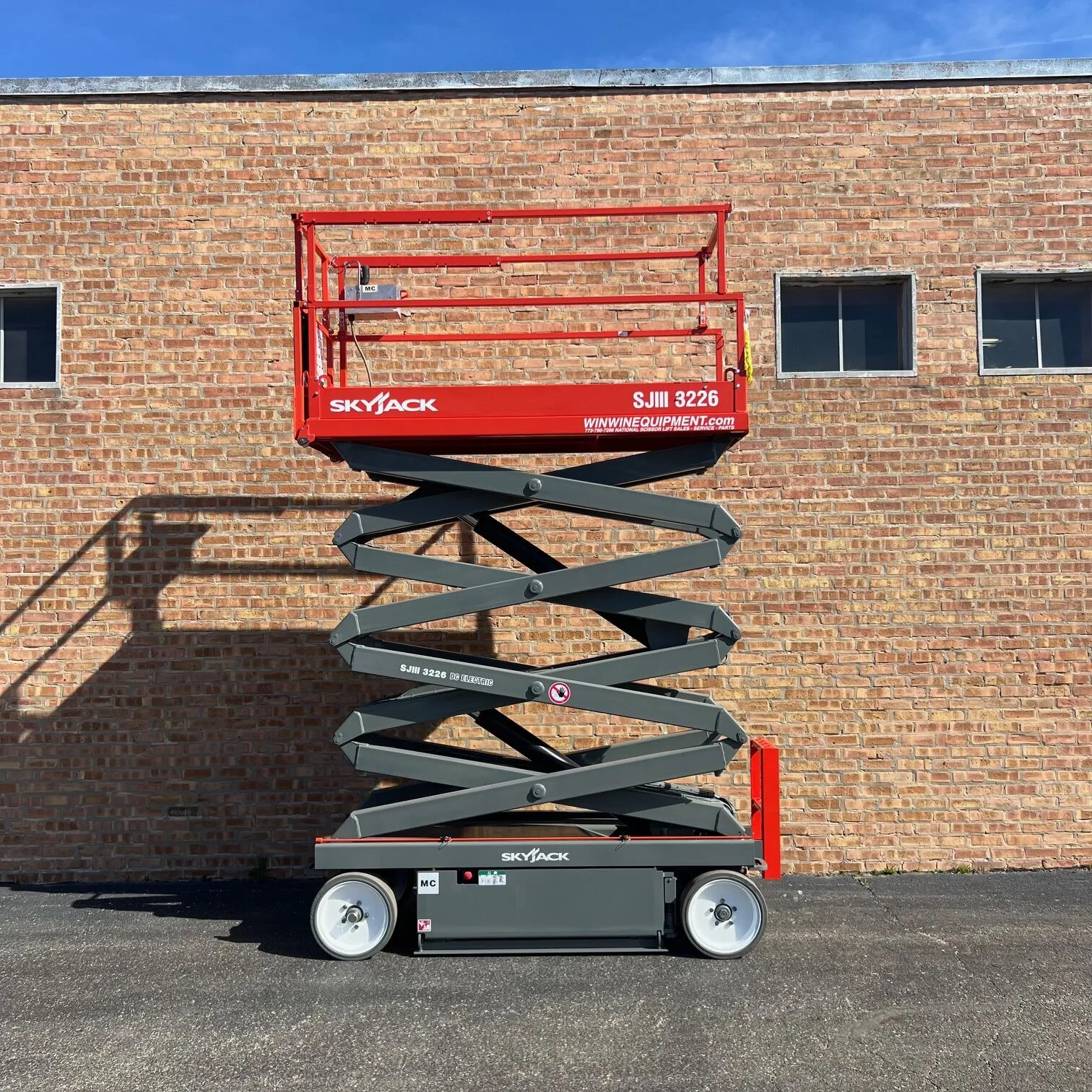

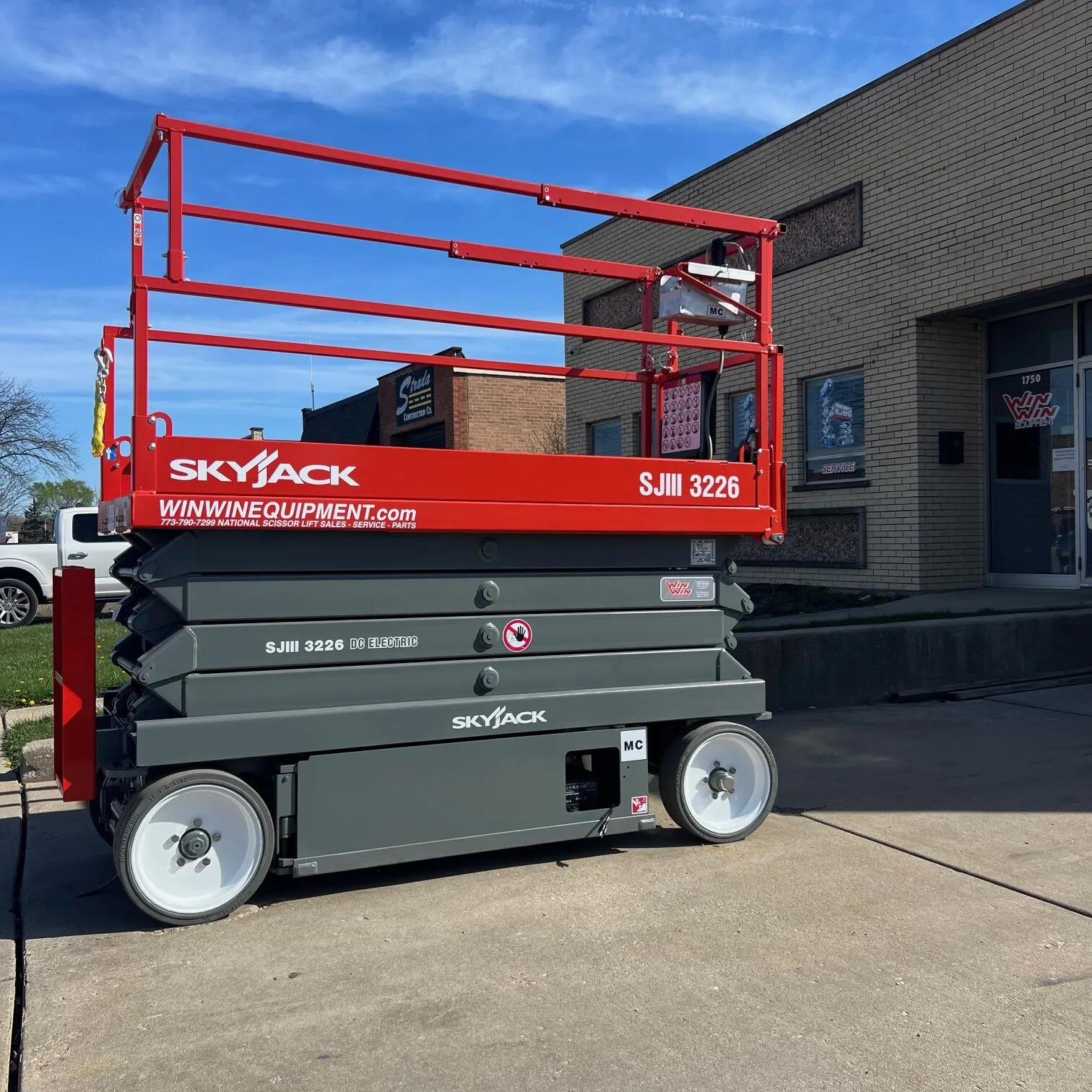

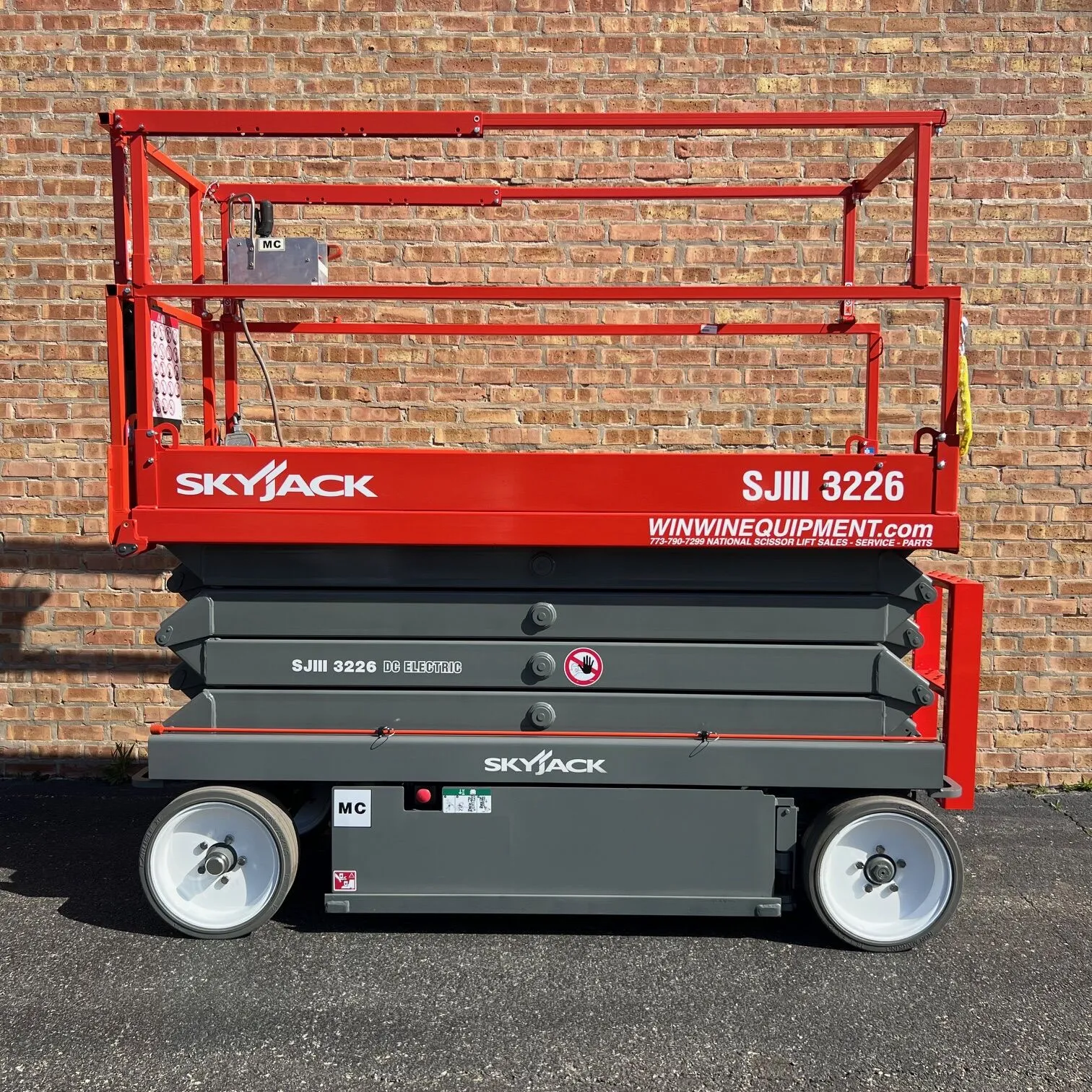

This fully refurbished 2016 Skyjack SJIII3226 electric scissor lift delivers 26 ft of platform height at one of the best price points available for a quality refurbished narrow-frame unit. The SJIII3226 is a proven workhorse trusted by contractors, building managers, and equipment rental companies across the country — and the 2016 model benefits from Skyjack’s time-tested engineering and straightforward mechanical design that makes maintenance simple and parts readily available.
For buyers looking for a capable 26 ft scissor lift without paying a premium for the newest model year, the 2016 SJIII3226 offers outstanding value. Its 32-inch narrow width navigates through standard doorways and tight corridors, while the platform provides enough space for a single operator with tools and small materials. Typical applications include drop ceiling installation, electrical and data cabling, fire alarm maintenance, painting and finishing work, and routine facility inspections. The electric drive keeps operation clean and quiet — suitable for hospitals, hotels, retail environments, and occupied office spaces.
Win Win Equipment refurbishes each SJIII3226 from the ground up at our shop in Addison, Illinois. This 2016 unit receives new batteries, tires, a charger, a rebuilt control box, new decals, and a thorough mechanical and electrical inspection. Hydraulic hoses, cylinders, and fittings are inspected and replaced as needed. The machine is then repainted to factory color so it arrives looking professional and ready to work on any jobsite.
Lead time is typically 2–3 weeks from payment. Call Win Win Equipment at 773-790-7299 to discuss pricing, availability, or to arrange a facility visit. See all available refurbished scissor lifts.
Drivable at full height
Variable speed, rear two wheel hydraulic drive
Dual holding brakes
Proportional controls for drive & lift functions
3’ (0.91 m) Roll out extension deck
24V DC power source
Low voltage battery protection
Up to 30% Gradeability
Solid rubber, non-marking tires
Pothole protection system
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Hinged railing system (3226)
Forklift pockets and tie down/lift lugs
Relay based control system
Color coded and numbered wiring system
Work Height – 32’ (9.75 m)
Raised Platform Height – 26’ (7.92 m)
Lowered Platform Height – 45” (1.14 m)
Overall Width – 32” (0.81 m)
Overall Length – 91.5” (2.32 m)
Stowed Height (Rails Up) – 84.7” (2.15 m)
Stowed Height (Rails Down) – 70.6” (1.79 m)
Platform Width (Inside Dimension) – 28” (0.71 m)
Platform Length (Inside Dimension) – 84” (2.13 m)
Extension Deck (Roll Out) – 3’ (0.91 m)
Ground Clearance (Stowed) – 3.5” (8.89 cm)
Ground Clearance (raised) – 0.75” (1.90 cm)
Wheelbase – 69” (1.75 m)
Weight – 4,135 lbs (1,876 kg)
Grade ability – 30%
Turning Radius (Inside) – 50” (1.27 m)
Turning Radius (Outside) – 108” (2.74 m)
Lift Time (With Rated Load) – 56 sec
Lower Time (With Rated Load) – 42 sec
Drive Speed (Stowed) – 2.4 mph (3.9 km/h)
Drive Speed (Raised) – 0.7 mph (1.1 km/h)
Maximum Drive Height – Full Height
Capacity (Overall) – 500 lbs (227 kg)
Distributed Capacity (Main Platform) – 250 lbs (113 kg)
Distributed Capacity (Extension Deck) – 250 lbs (113 kg)
Local Floor Load (With Rated Load) – 130 psi (897 kPa)
Overall Floor Load (With Rated Load) – 235 psf (12 kPa)
Maximum # of Persons – 2
Wind Rating – 28 mph (12.5 m/s)
Tire Type – Solid, N/M
Tire Size – 16 x 5 x 12
Lead time for refurbished equipment is typically 2–3 weeks from payment. Expedited timelines or alternative equipment options may be available upon request.
Year: 2016 Hours: Low
Condition: Fully Refurbished
Refurbishment Type: Refurbished to order
