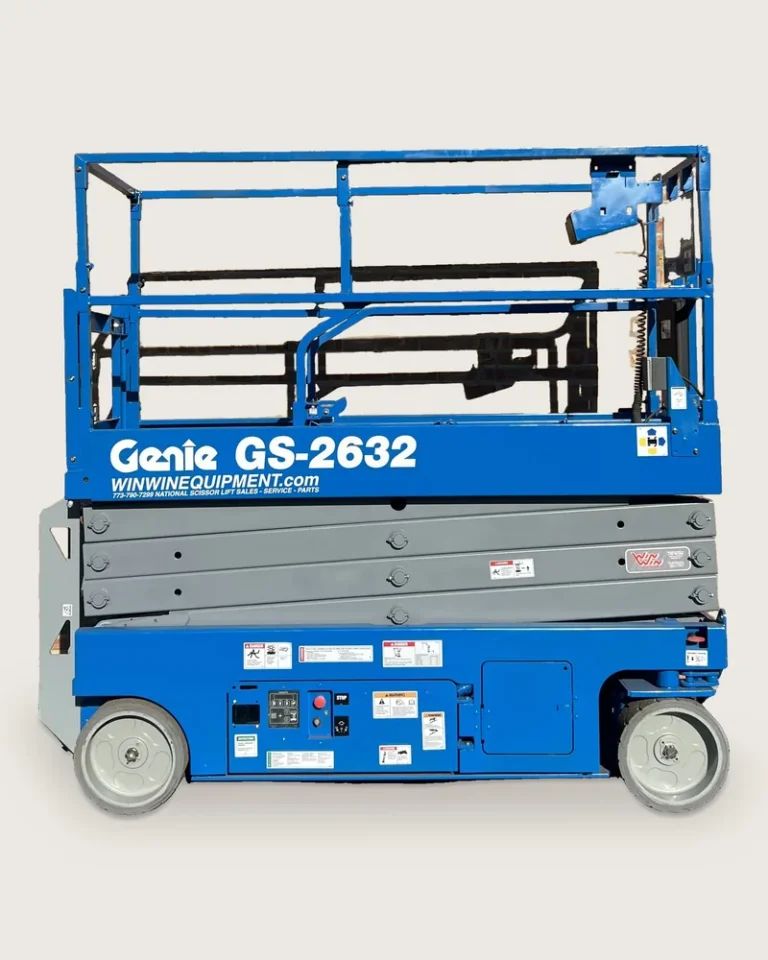

The Genie GS-2632 is the 26-foot narrow-deck workhorse — the lift electricians and interior contractors run through doorways all day. We repair, inspect, and refurbish them at our Addison, IL shop. We pick yours up and diagnose it the same day; straightforward fixes go back the next day, and complex problems get an honest timeline before any work starts. Call 773-790-7299. This page also covers its GS32-family siblings, the GS-2032 and GS-3232.

GS-2632 quick service specs

From Genie’s service manual (P/N 1272217GT) for SmartLink-generation units:

Battery pack	4 × 6V, Group GC2, Type T-105 flooded (225 Ah) — or 6V-AGM maintenance-free option (200 Ah)
Hydraulic oil	AW46 hydraulic oil — our shop standard (Genie’s manual lists Chevron Rando HD ISO 32, an AW-type oil; low-temp fluid below 0°F)
Hydraulic tank / system	3.4 gal tank / 4.5 gal system
Tires	15 × 5 in solid rubber, non-marking
Wheel castle nut torque	300 ft-lbs dry / 225 ft-lbs lubricated
Platform capacity	500 lbs
Lift / lower time	28–32 sec up; 24–36 sec down depending on configuration
Drive speed (stowed)	2.0–2.2 mph max by serial range; 0.5 mph raised
Function pump	Gear type, 4 gpm @ 2500 psi

Spec sheet: every unit this page covers

Spec	GS-2032	GS-2632	GS-3232
Platform capacity	800 lbs	500 lbs	500 lbs
Lift time (up)	28–32 s	28–32 s	55–59 s
Lower time	24–36 s	24–36 s	28–37 s
Hydraulic system	4.5 gal	4.5 gal	5.5 gal
Tires	15 × 5 in solid	15 × 5 in solid	15 × 5 in solid
Gradeability	30%	25%	25%
Notes	—	—	Outriggers: leveling 5° side / 3° front-rear; adds outrigger codes

Common GS-2632 problems — check these before you call

Won’t lift or won’t do anything: e-stops at both stations (twist to reset), key switch position, then batteries — a tired 24V pack drops functions before it dies. Ground controls working while platform controls don’t points upstream of the joystick.

Stuck in low speed: a GS-2632 that creeps everywhere often has a hi/lo speed circuit fault (H033 or H079 on SmartLink units) — the machine deliberately defaults to low. It’ll work, but it’s telling you something.

Won’t drive but lifts fine: check the display for drive-circuit codes (H013–H021) and look under the machine — a stuck pothole guard (PHS on the display) inhibits drive while elevated.

Won’t charge: read the charger LED. Solid red = internal fault (F-code, usually a charger replacement). Flashing amber = external (E-code — battery voltage, connections, or a mismatched charge profile). E-0-0-4 (defective battery) and E-0-2-0 (no profile programmed) are the two we see most.

Drifts down overnight: visible sink over hours means the down valve isn’t seating or the cylinder is bypassing — shop job, quoted before we touch it.

GS-2632 display codes — status vs. fault

SmartLink-equipped GS32 units (LCD at the ground controls) show status codes — LL (off-level), PHS (pothole guard stuck), OL (overload), CH/CHrgr (charger connected), br (brake released) — which aren’t malfunctions, just the machine explaining itself. Fault codes mean a detected electrical problem, across the same five families as the rest of the GS line: H (hydraulic-function circuits), P (power devices), U (switches/joystick), F (sensors), C (control modules). The frequent flyers on GS-2632s:

Code	Meaning	Effect
H001–H003	Platform up circuit short/open	No lift
H013–H021	Drive forward/reverse circuit fault	No drive in that direction
H033 / H079	Hi/lo speed circuit fault	Machine locked to low (or high) speed
H067–H072	Motor controller enable/throttle fault	Down-only
P001 / P003	Switched power circuit short (limit/pothole/tilt harness)	All functions inhibited
U033–U035	Drive joystick out of calibration or shorted	No drive/steer from platform
U037–U039	Foot switch pressed at startup / mis-wired	All functions inhibited
F005 / F007	Pothole or chassis tilt switch short	Down-only while elevated
F010 / F011	Platform height sensor short	Down-only while elevated
F034–F036	Height sensor out of calibration	All inhibited — needs recalibration
C021 / C023	Platform controls not detected / model mismatch	All functions inhibited
C058 / C061 / C063	Drive controller voltage, power or CAN fault	All functions inhibited

Note for GS-3232 owners: your machine adds outrigger-specific codes (H049–H077, F012–F023, U023, C029) on top of these. Full family reference on the Genie service page — or call 773-790-7299 with your code and serial number. Older non-SmartLink units use different diagnostics; we work on every generation.

Charger codes and the battery-profile gotcha

Same smart-charger logic as the rest of the GS line: F-0-0-1 through F-0-0-5 are internal charger faults (30-second reset, then replacement if it returns); E-codes point outward — E-0-0-1/2 voltage high/low, E-0-0-3 timeout, E-0-0-4 defective battery, E-0-0-7 amp-hour limit, E-0-1-2 reverse polarity, E-0-2-3/E-0-2-5 AC supply trouble. And the gotcha: swap between flooded and AGM batteries and the charger profile must be reprogrammed (P001/P003 flooded, P043 AGM) — we do it with every battery install.

Annual inspection for the GS-2632

Due no more than 13 months after the last one: annual ANSI/OSHA inspection — $225 in our shop, $350 on-site in Chicagoland, same-day certificate when pre-scheduled, renewal reminder included.

Pricing and turnaround

Repairs are $150/hr plus parts, quoted after same-day diagnosis and approved by you first. If the estimate crosses roughly half the machine’s value, we’ll say so and show you a refurbished GS-2632 with new batteries, tires, charger and a fresh inspection on it.

GS-2632 service FAQ

What batteries does a Genie GS-2632 take?
Four 6-volt Group GC2 batteries — T-105 flooded standard, AGM optional. The charger profile must match the type. We install Crown deep-cycle batteries to this spec — a US-built pack that outlasts the cheap imports.

What hydraulic oil and how much?
AW46 hydraulic oil is our shop standard (Genie’s manual lists Chevron Rando HD ISO 32); 3.4-gallon tank, 4.5 gallons total system.

Why is my GS-2632 stuck in slow speed?
Usually the hi/lo speed circuit (H033/H079) — an open circuit defaults the machine to low speed on purpose. It’s drivable but needs attention.

Is the GS-2032 the same machine?
Same GS32 family and electrical system, shorter stack and higher capacity (800 lbs). Everything on this page applies; we service both, plus the GS-3232 with its outrigger system.

GS-2632 or Skyjack SJIII3226 — which holds up better?
We sell and service both; here’s our honest side-by-side comparison.

---

Spec and code data: Genie Service & Repair Manual P/N 1272217GT (Rev E1) for covered serial ranges. Trademarks belong to their owners; Win Win Equipment is an independent service shop.
