$9,500.00

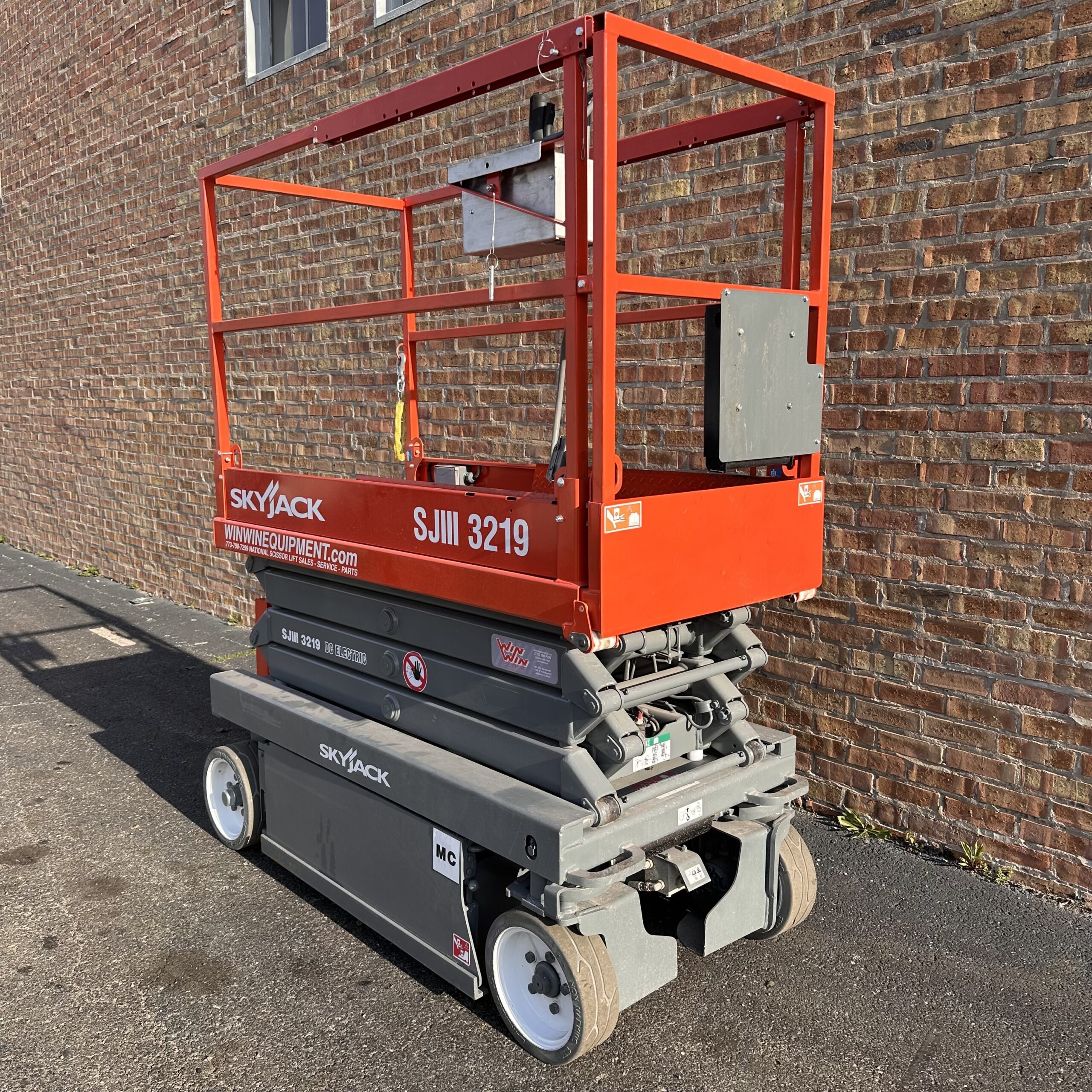

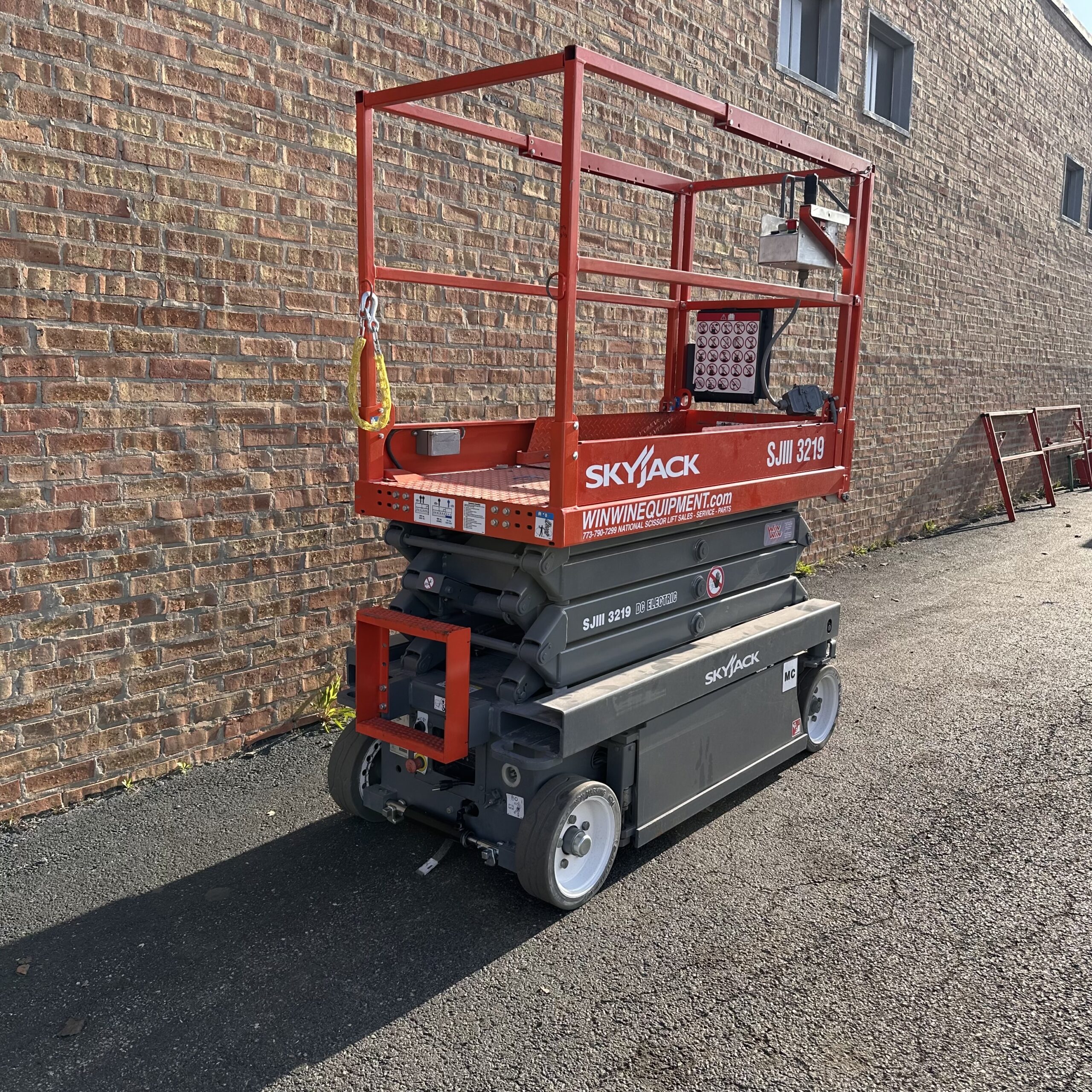

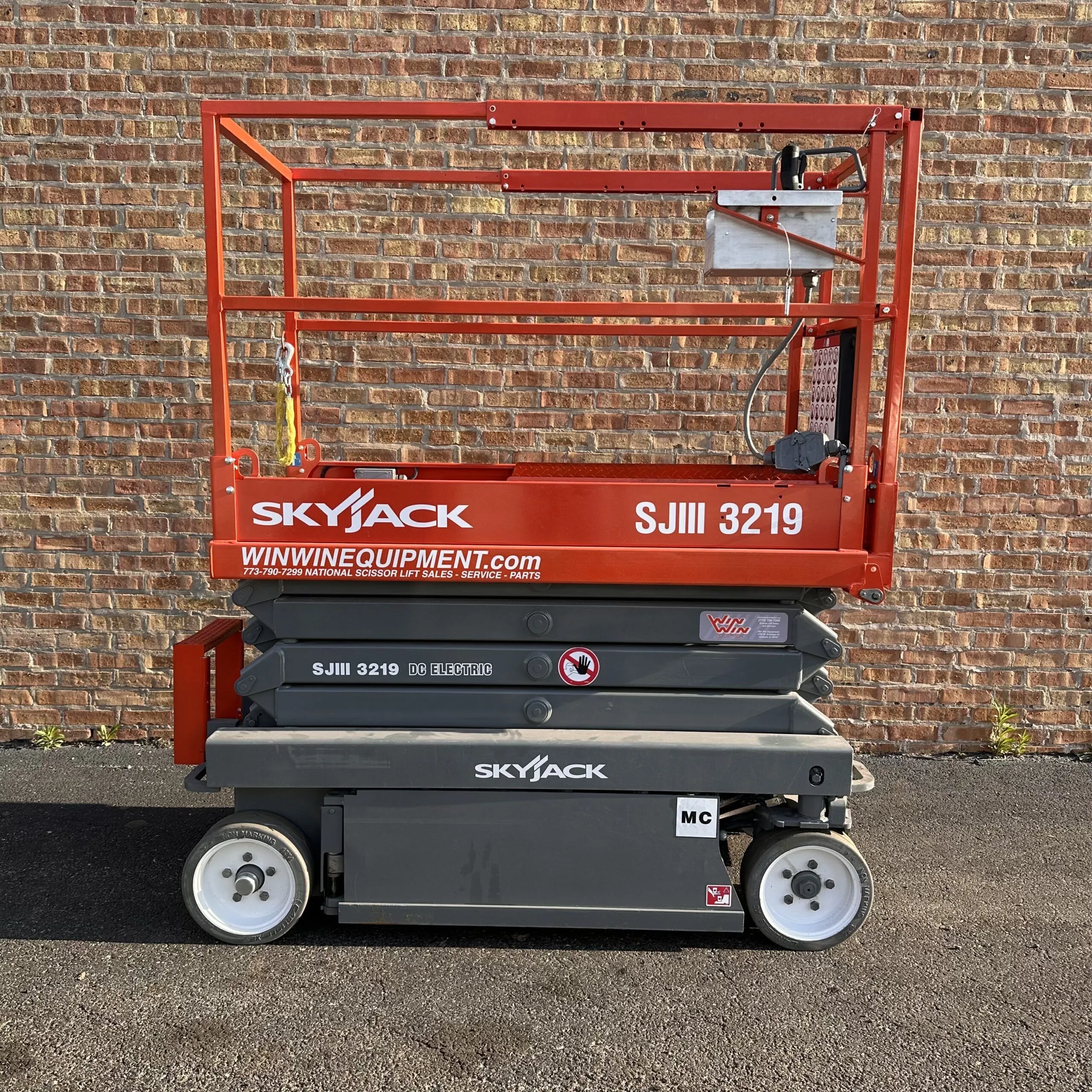

THIS 2017 Skyjack SJIII3219 Scissor lift IS READY TO SHIP
Year: 2017

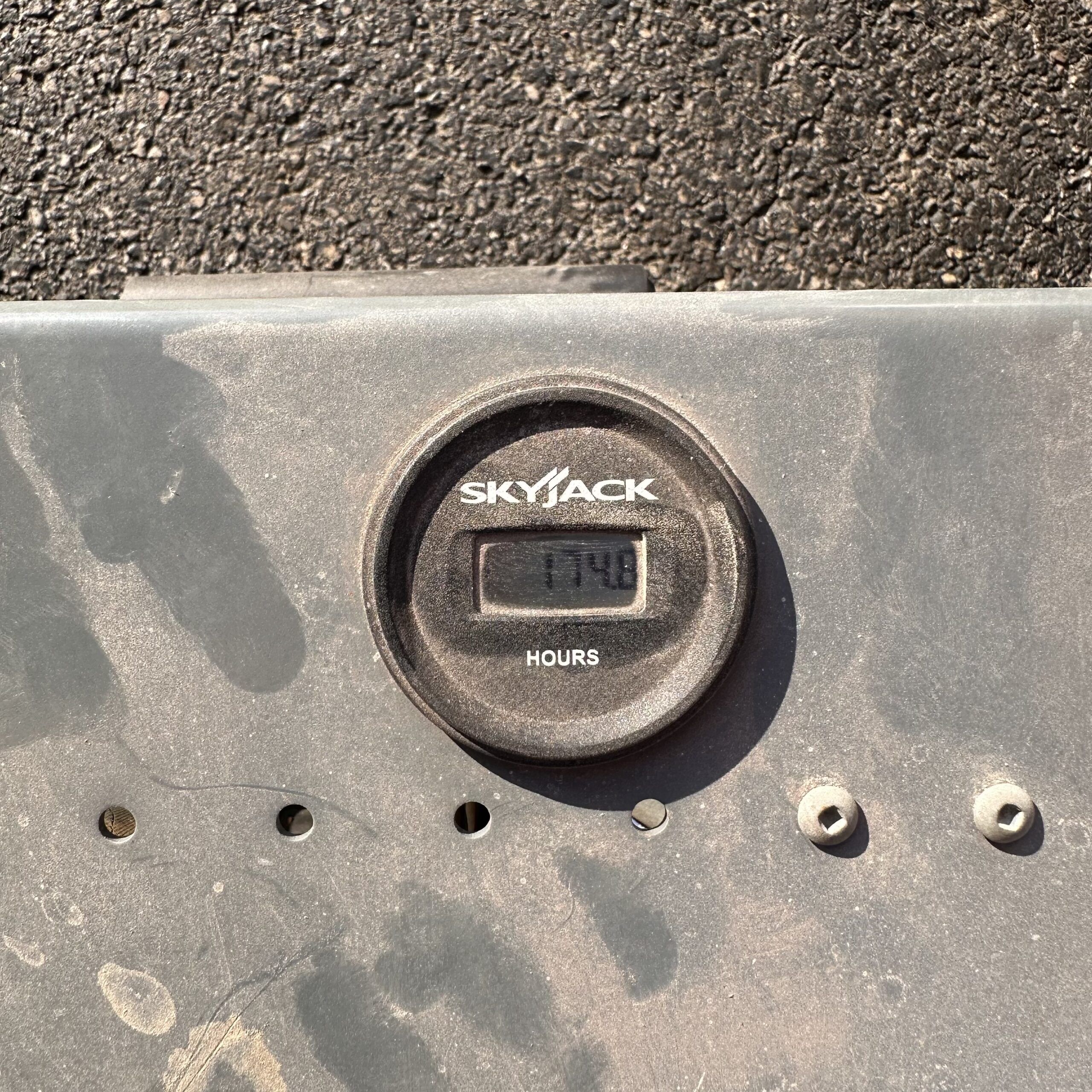

Hours: 174
Fully Refurbished and Ready to Work!
DC Electric Scissor Lift for sale! This narrow Skyjack SJIII3219 has robust steel construction – strong and durable.
Refurbished aerial lift platform in good working condition.
Drivable at full height
Variable speed, front two wheel hydraulic drive
90° steering (zero inside turning radius)
Dual holding brakes
Proportional controls for drive & lift functions
3’ (0.91 m) Roll out extension deck
24V DC power source
Low voltage battery protection
30% Gradeability
Solid rubber, non-marking tires
Pothole protection system
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Forklift pockets and tie down/lift lugs

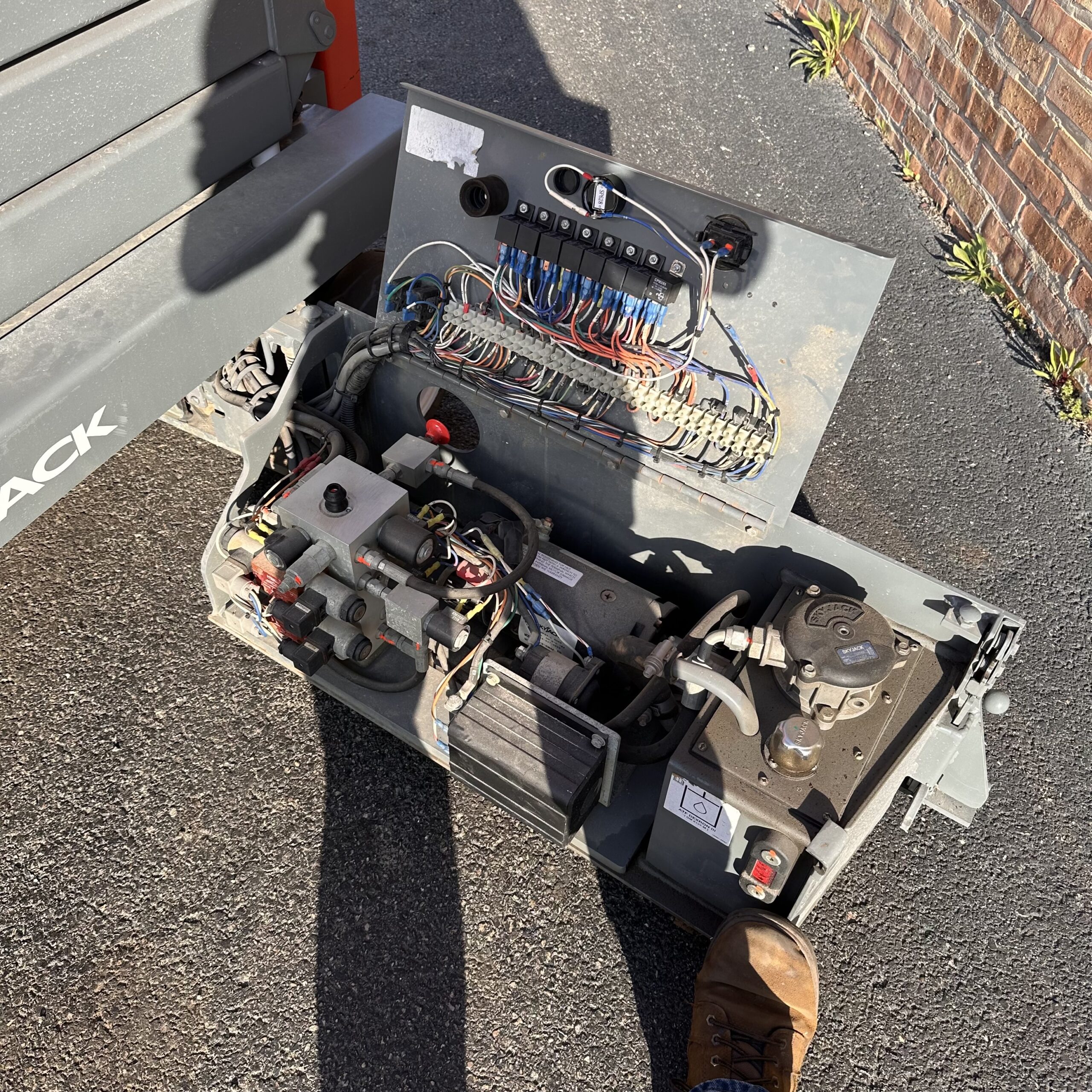

Relay based control system
Color coded and numbered wiring system
Telematics ready
Work Height – 25’ (7.62 m)
Raised Platform Height – 19’ (5.79 m)
Lowered Platform Height – 39” (0.99 m)
Overall Width – 32” (0.81 m)
Overall Length – 70” (1.78 m)
Stowed Height (Rails Up) – 78.5” (1.99 m)
Stowed Height (Rails Down) – OPT 64.5” (1.64 m)
Platform Width (Inside Dimension) – 26” (0.66 m)
Platform Length (Inside Dimension) – 64” (1.63 m)
Extension Deck (Roll Out) – 3’ (0.91 m)
Ground Clearance (Stowed) – 2.375” (6.03 cm)
Ground Clearance (raised) – 0.7” (1.78 cm)
Wheelbase – 55” (1.40 m)
Weight – 2,580 lbs (1,170 kg)
Gradeability – 30%
Turning Radius (Inside) – 0
Turning Radius (Outside) – 66” (1.68 m)
Lift Time (With Rated Load) – 25 sec
Lower Time (With Rated Load) – 29 sec
Drive Speed (Stowed) – 2 mph (3.2 km/h)
Drive Speed (Raised) – 0.7 mph (1.1 km/h)
Maximum Drive Height – Full Height
Capacity (Overall) – 550 lbs (249 kg)
Distributed Capacity (Main Platform) – 300 lbs (136 kg)
Distributed Capacity (Extension Deck) – 250 lbs (113 kg)
Local Floor Load (With Rated Load) – 110 psi (759 kPa)
Overall Floor Load (With Rated Load) – 201 psf (10 kPa)
Maximum # of Persons – 2
Wind Rating – 28 mph (12.5 m/s)
Tire Type – Solid, N/M
Tire Size – 12 x 4 x 8
New batteries
New battery charger
New paint & decals
New tires
