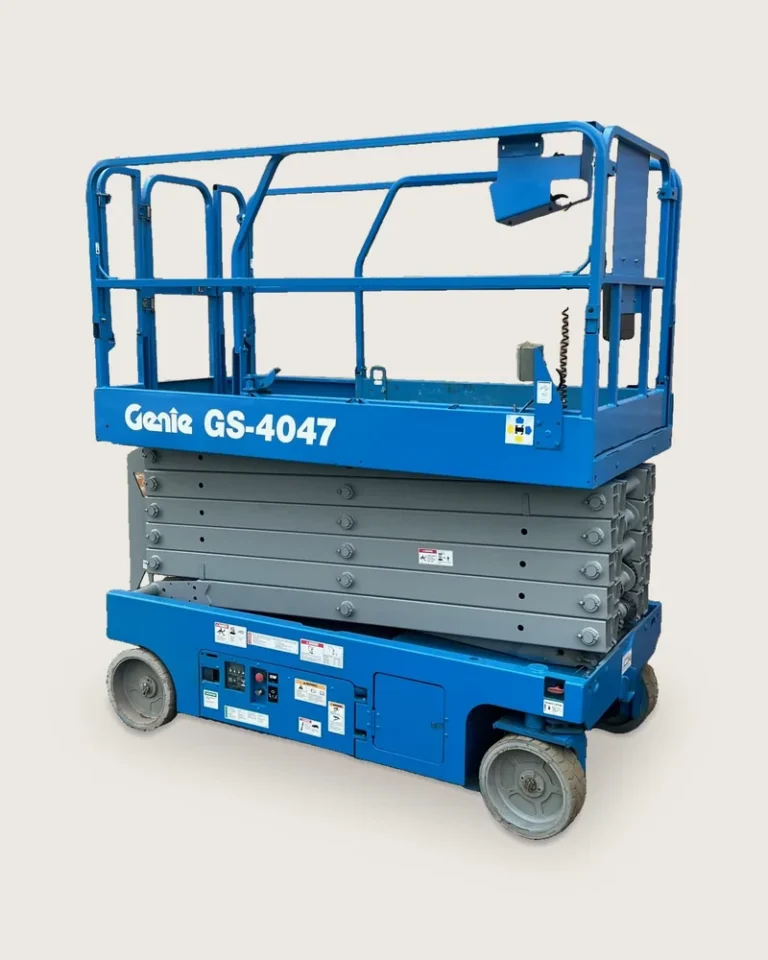

The Genie GS-4047 is the tall one — 40-foot platform class in a 47-inch-wide chassis — and it’s also the oddball of the GS line: it runs 12-volt batteries where every other GS scissor runs 6-volt, and it has its own relief-valve fault codes. We repair, inspect, and refurbish them at our Addison, IL shop. We pick yours up and diagnose it the same day; straightforward fixes go back the next day, and complex problems get an honest timeline before any work starts. Call 773-790-7299.

GS-4047 quick service specs

From Genie’s service manual (P/N 1272217GT) for SmartLink-generation units — note where the GS-4047 differs from its GS siblings:

Battery pack	4 × 12V, Group GC2, Type T-1275 flooded (150 Ah, 82 lbs each) — not the 6V pack the rest of the GS line uses
Charger profile	P007 (GS-4047-specific flooded profile) — must be reprogrammed if battery type changes
Hydraulic oil	AW46 hydraulic oil — our shop standard (Genie’s manual lists Chevron Rando HD ISO 32, an AW-type oil; low-temp fluid below 0°F)
Hydraulic tank / system	5.9 gal tank / 7.5 gal system — biggest in the GS slab line
Tires	15 × 5 in solid rubber, non-marking
Wheel castle nut torque	300 ft-lbs dry / 225 ft-lbs lubricated
Platform capacity	550 lbs (ANSI/CSA) · 770 lbs (CE/AS)
Lift / lower time	71–76 sec up; 41–46 sec down

Common GS-4047 problems — check these before you call

Won’t lift above the down limit switch: the GS-4047 has its own relief-valve circuit codes — H102 / H103 / H104 (short to battery positive/negative, or open circuit). Any of them inhibits everything except platform down while elevated. That’s a wiring-or-coil diagnosis — our meter’s job.

Won’t do anything: e-stops at both stations, key switch, then the batteries — and on this machine check all four 12-volt blocks; one dead T-1275 drags the pack down fast. Ground controls working while platform controls don’t points upstream of the joystick.

Stops or slows at height / LL on the display: at 40 feet the tilt system is unforgiving — off-level readings inhibit lift by design. Flat ground first; persistent LL on a level floor means the tilt sensor (F129 if the sensor itself mismatches).

Won’t charge: solid red LED = internal charger fault (F-codes — usually replacement). Flashing amber = external E-code: battery voltage, connections, or the charge profile. On a GS-4047, a charger swapped in from another GS machine with the wrong profile (should be P007) will refuse to charge — E-0-1-3 or E-0-2-0.

GS-4047 display codes — status vs. fault

SmartLink-equipped units show status codes (LL off-level, PHS pothole guard stuck, OL overload, CH/CHrgr charger connected, br brake released) that aren’t malfunctions, and fault codes in the same five families as the rest of the GS line — H (hydraulic circuits), P (power), U (switches/joystick), F (sensors), C (control modules). The GS-4047 highlights:

Code	Meaning	Effect
H102–H104	GS-4047 only: relief valve circuit short/open	Down-only while above the limit switch
H001–H003	Platform up circuit short/open	No lift
H013–H021	Drive circuit fault	No drive in that direction
H067–H072	Motor controller enable/throttle fault	Down-only
U033–U035	Drive joystick out of calibration or shorted	No drive/steer from platform
F005 / F007	Pothole or chassis tilt switch short	Down-only while elevated
F010 / F011	Platform height sensor short	Down-only while elevated
F034–F036	Height sensor out of calibration	All inhibited — recalibration
F129	Universal tilt sensor mismatch	All inhibited — sensor replacement
C021 / C025	Platform controls not detected / overload not calibrated	All functions inhibited
C058 / C061 / C063	Drive controller voltage, power or CAN fault	All functions inhibited

Different code, or an older non-SmartLink GS-4047? Call 773-790-7299 with the serial number — we work on every generation.

Annual inspection, pricing, and the honest math

Annual ANSI/OSHA inspection — due within 13 months of the last one: $225 in-shop, $350 on-site across Chicagoland, same-day certificate pre-scheduled, renewal reminders included. Repairs $150/hr plus parts, quoted after same-day diagnosis. If the estimate crosses roughly half the machine’s value, we’ll say so and show you a refurbished GS-4047 with a fresh inspection on it.

GS-4047 service FAQ

What batteries does a Genie GS-4047 take?
Four 12-volt T-1275 flooded batteries (150 Ah, 82 lbs each) — unlike the rest of the GS line’s 6-volt packs. Don’t mix the two, and keep the charger on profile P007. We install Crown deep-cycle batteries to this spec — a US-built pack that outlasts the cheap imports.

What hydraulic oil and how much?
AW46 hydraulic oil is our shop standard (Genie’s manual lists Chevron Rando HD ISO 32); 5.9-gallon tank, 7.5 gallons total system.

Why does it lift but refuse to go above a certain height?
Check the display for H102–H104 (relief valve circuit) or LL/tilt faults — the machine deliberately restricts lift when either system flags.

GS-4047 or Skyjack SJIII4740?
The 40-ft class rivals — we sell and service both: honest side-by-side here.

---

Spec and code data: Genie Service & Repair Manual P/N 1272217GT (Rev E1) for covered serial ranges. Trademarks belong to their owners; Win Win Equipment is an independent service shop.
