$16,500.00

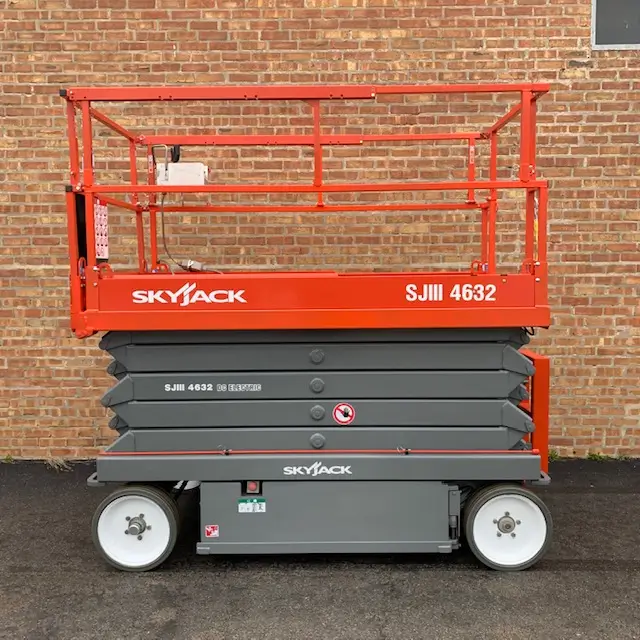

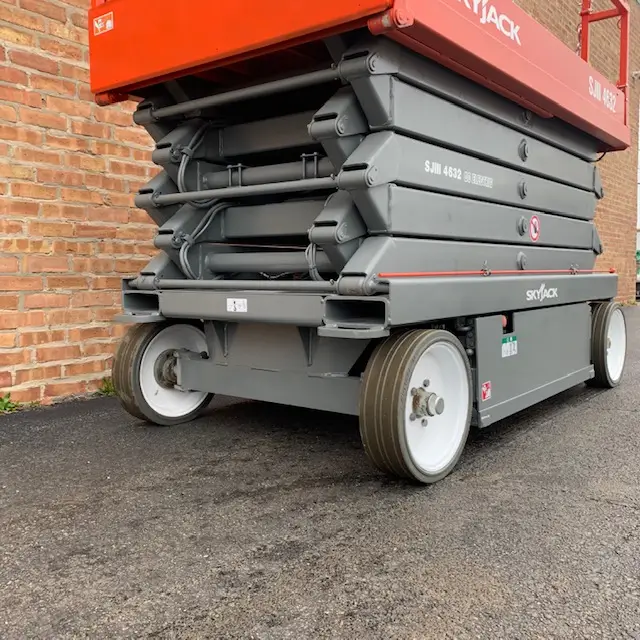

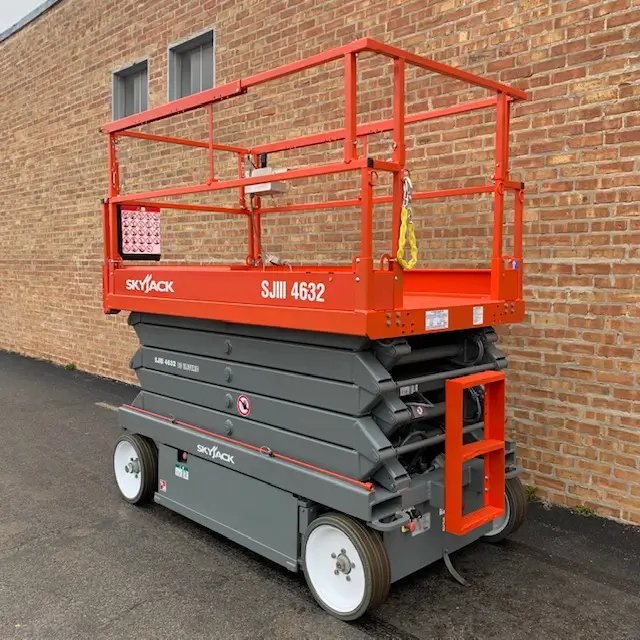

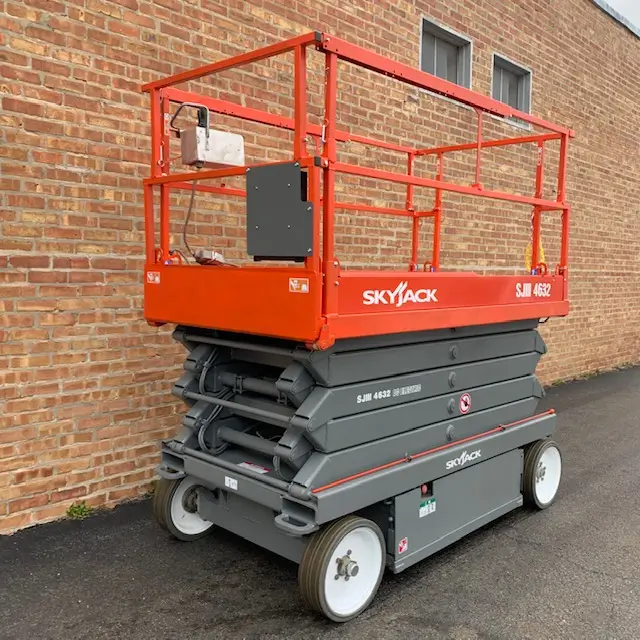

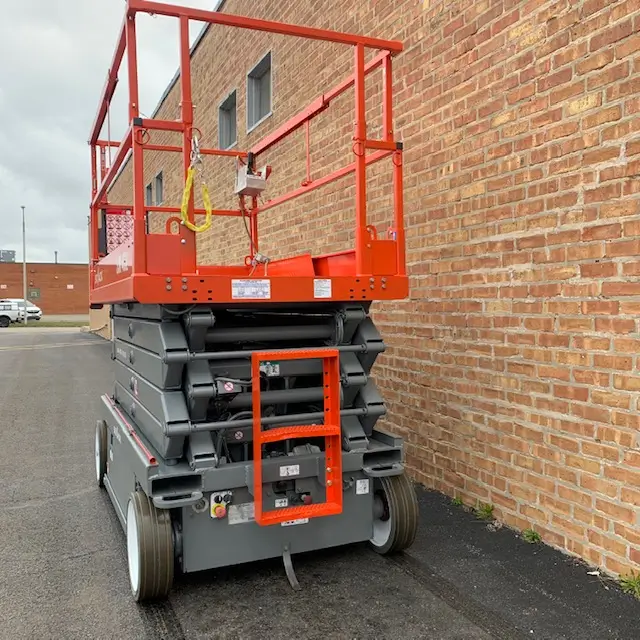

This 2018 fully refurbished Skyjack SJIII4632 electric scissor lift is a wide-platform indoor access machine designed for commercial facilities, warehouses, and large interior workspaces. With its 32 ft lift height and expanded deck, the SJIII4632 provides added room for tools and materials while working at elevation.
All refurbished equipment is completed to order with a typical lead time of 2–3 weeks from the time of payment. If you require equipment sooner, please contact Win Win Equipment to discuss expedited lead times or available machines that may already be ready to ship.
The Skyjack SJIII4632 is a popular 32-foot electric scissor lift built for indoor environments where additional platform space is required. Its wide deck and higher capacity make it well suited for maintenance teams and contractors working with tools and materials at height.
Drivable at full height
Variable speed, rear two wheel hydraulic drive
Dual holding brakes

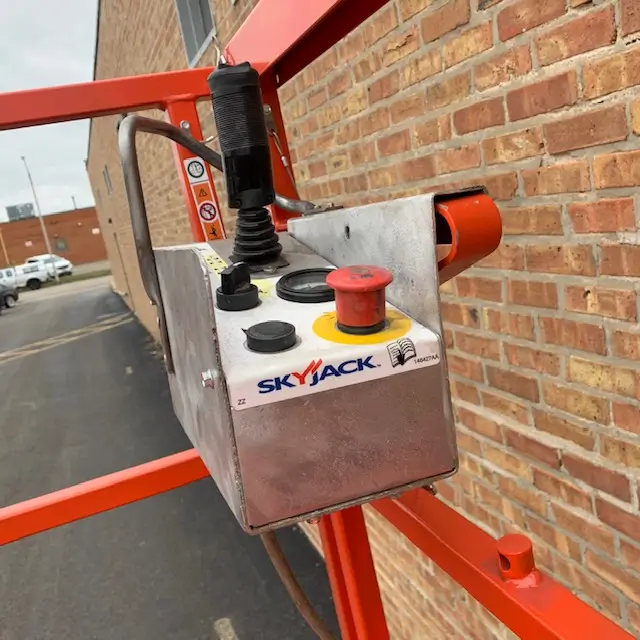

Proportional controls for drive & lift functions
4’ (1.22 m) Roll out extension deck
24V DC power source
Low voltage battery protection
Up to 30% Gradeability

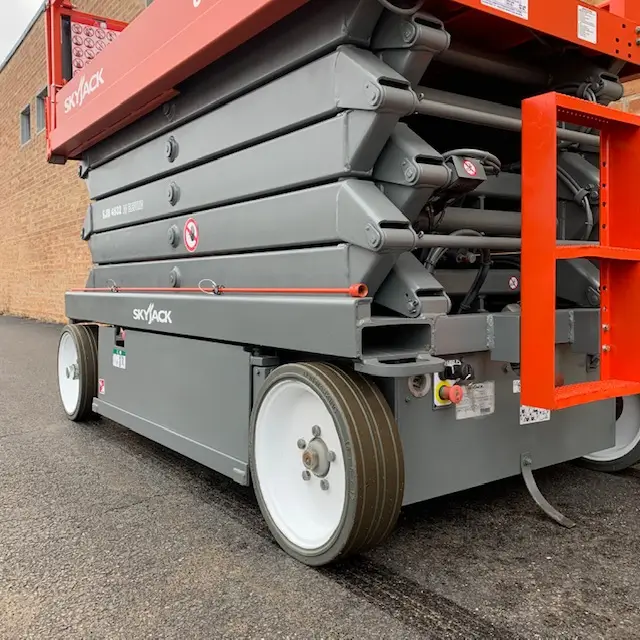

Solid rubber, non-marking tires
Pothole protection system
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Hinged railing system
Forklift pockets and tie down/lift lugs
Relay based control system
Color coded and numbered wiring system
Telematics ready
Work Height – 38’ (11.58 m)

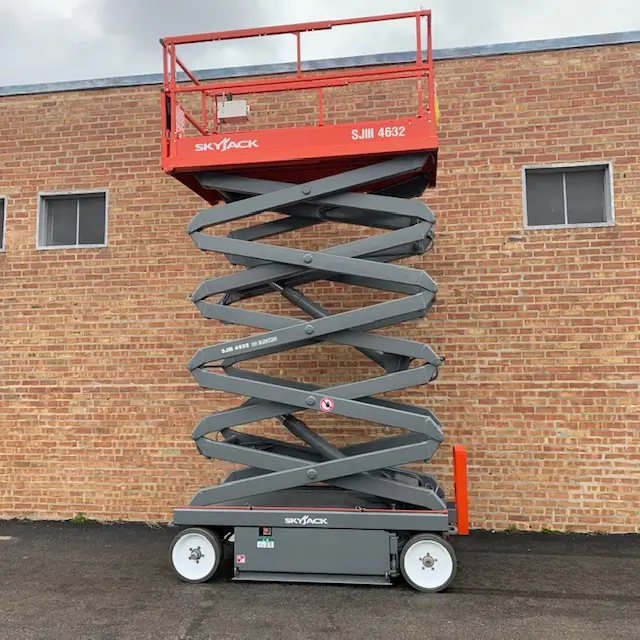

Raised Platform Height – 32’ (9.75 m)
Lowered Platform Height – 48.5” (1.23 m)
Overall Width – 46” (1.17 m)
Overall Length – 91” (2.31 m)
Stowed Height (Rails Up) – 88” (2.24 m)
Stowed Height (Rails Down) – 74” (1.88 m)
Platform Width (Inside Dimension) – 42” (1.07 m)
Platform Length (Inside Dimension) – 84” (2.13 m)
Extension Deck (Roll Out) – 4’ (1.22 m)
Ground Clearance (Stowed) – 3.5” (8.89 cm)
Ground Clearance (raised) – 0.75” (1.91 cm)
Wheelbase – 69” (1.75 m)
Weight – 5,075 lbs (2,302 kg)
Gradeability – 25%
Turning Radius (Inside) – 47.5” (1.21 m)
Turning Radius (Outside) – 93.5” (2.37 m)
Lift Time (With Rated Load) – 59 sec
Lower Time (With Rated Load) – 49 sec
Drive Speed (Stowed) – 2 mph (3.2 km/h)
Drive Speed (Raised) – 0.6 mph (1 km/h)
Maximum Drive Height – Full Height
Capacity (Overall) – 700 lbs (318 kg)
Distributed Capacity (Main Platform) – 450 lbs (204 kg)
Distributed Capacity (Extension Deck) – 250 lbs (113 kg)
Local Floor Load (With Rated Load) – 220 psi (1517 kPa)
Overall Floor Load (With Rated Load) – 204 psf (10 kPa)
Maximum # of Persons – 2
Wind Rating – 28 mph (12.5 m/s)
Tire Type – Solid, N/M
Tire Size – 16 x 5 x 12
This Skyjack SJIII4632 is fully refurbished to order at our facility in Addison, Illinois, and prepared for jobsite-ready use prior to delivery. Each refurbishment focuses on safe operation, mechanical reliability, and consistent electrical performance.
All refurbishment work is completed by our in-house technicians in Addison, IL. Additional refurbishment details and available options can be found on our full refurbishment program.
Standard refurbishment lead time is approximately 2–3 weeks from payment. Expedited timelines or alternate equipment options may be available upon request.
New batteries
New battery charger
New paint & decals
New tires
