$9,800.00

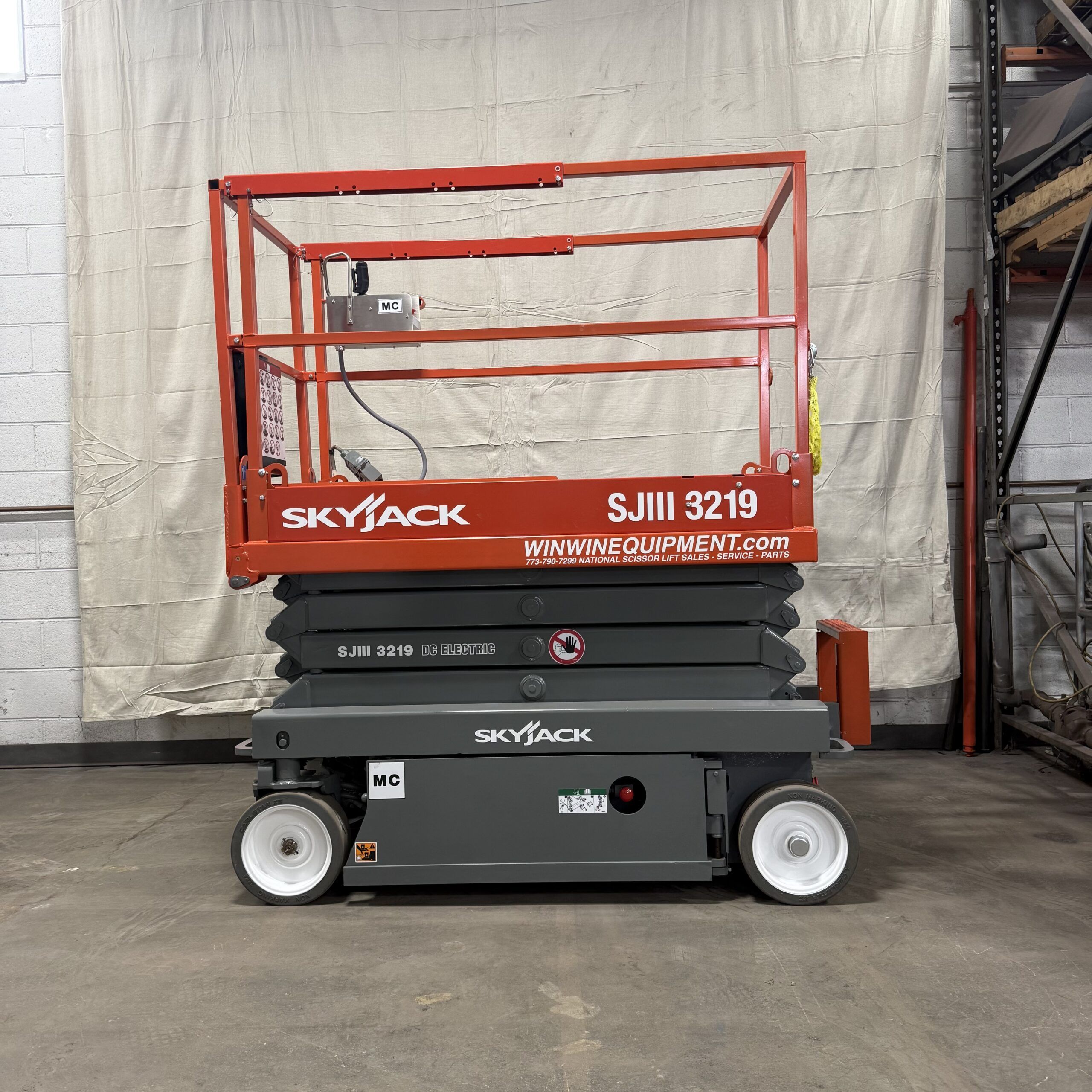

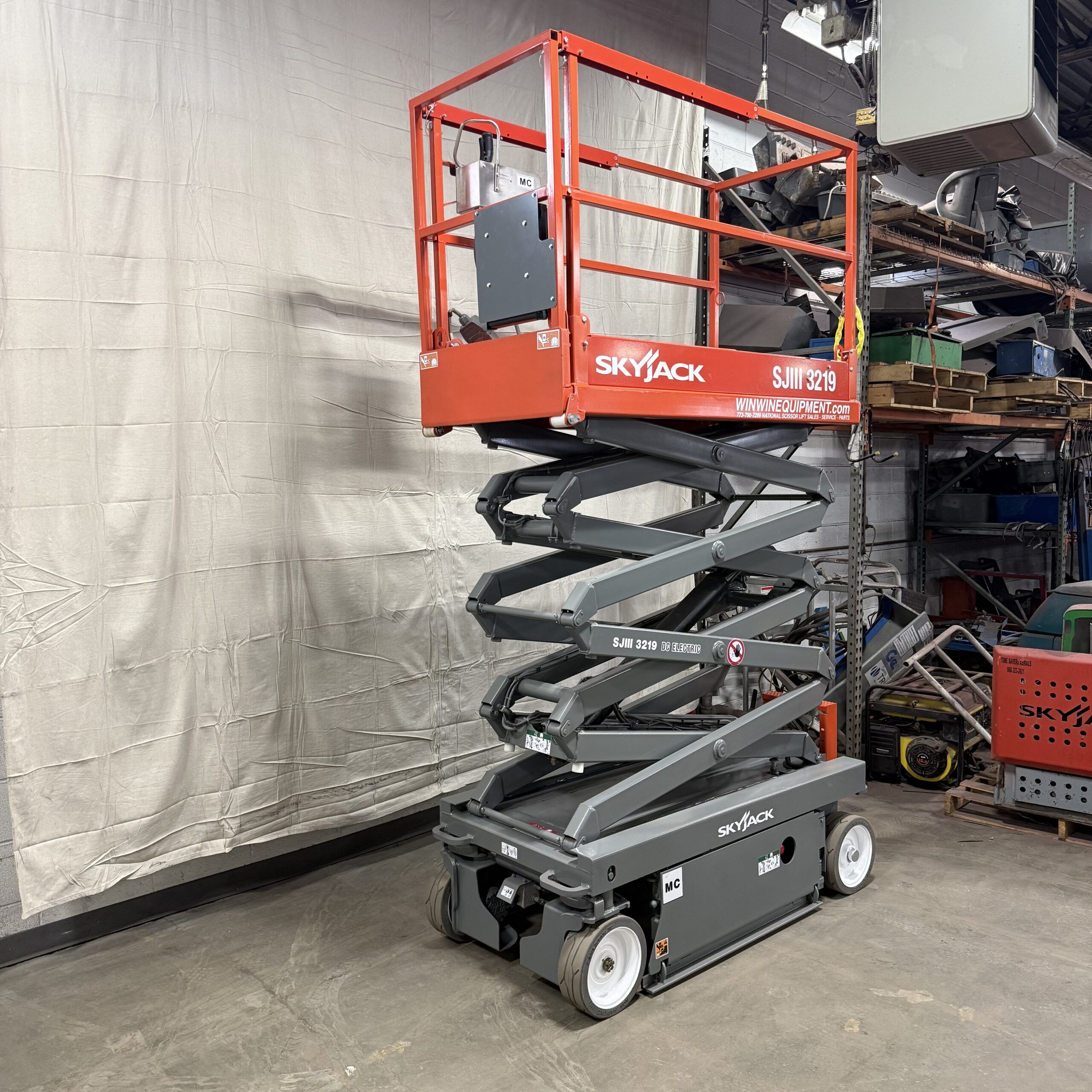

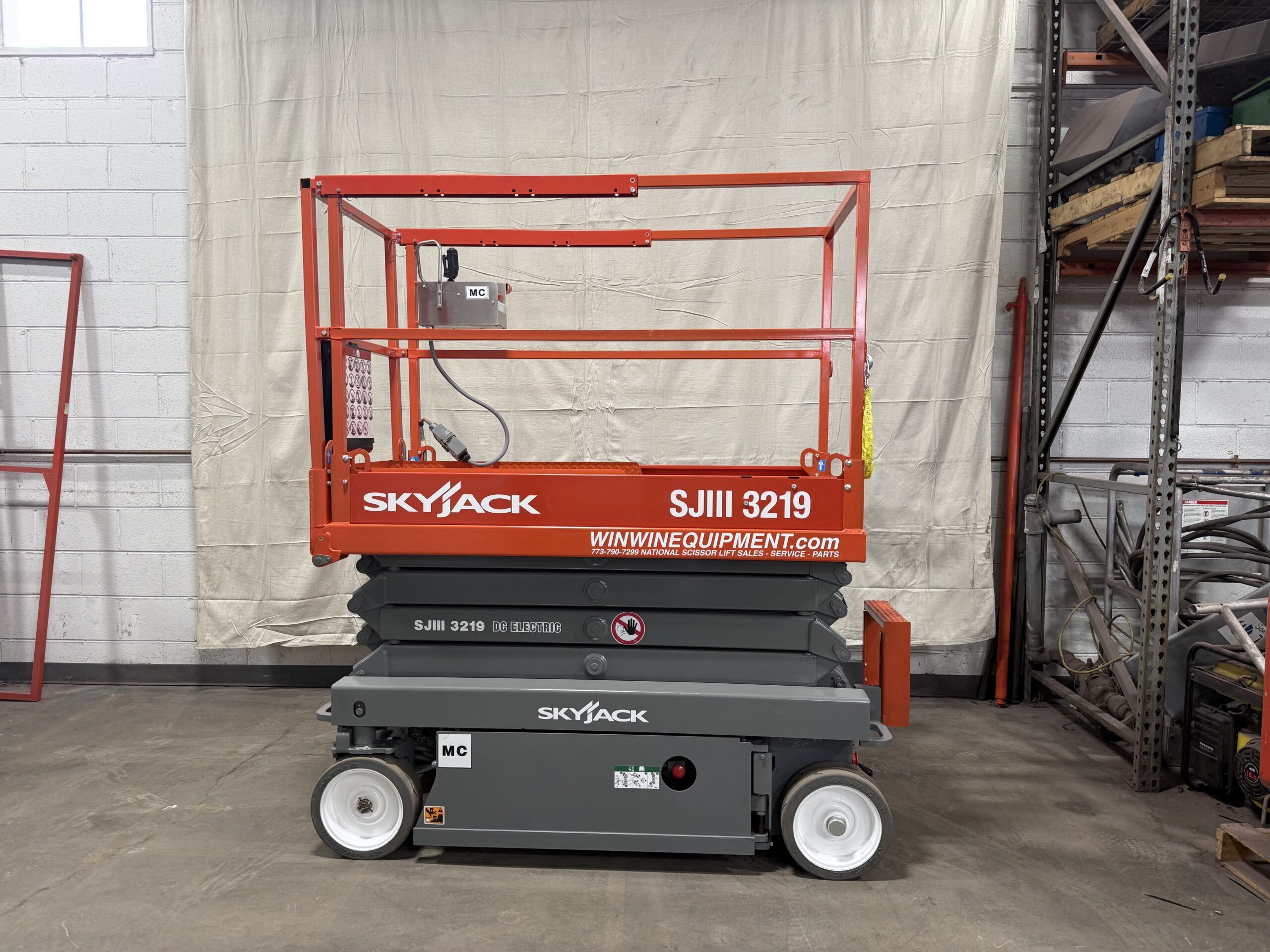

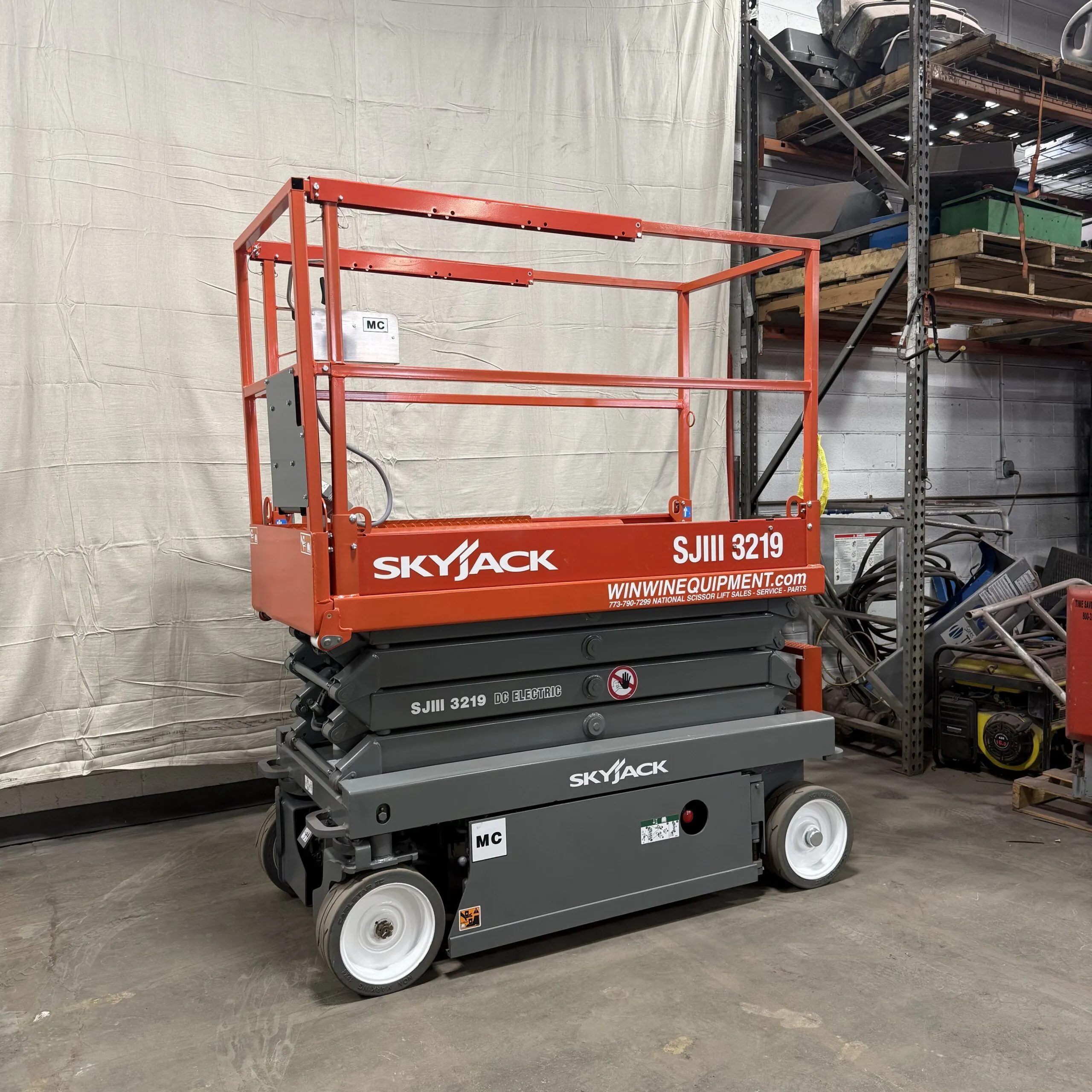

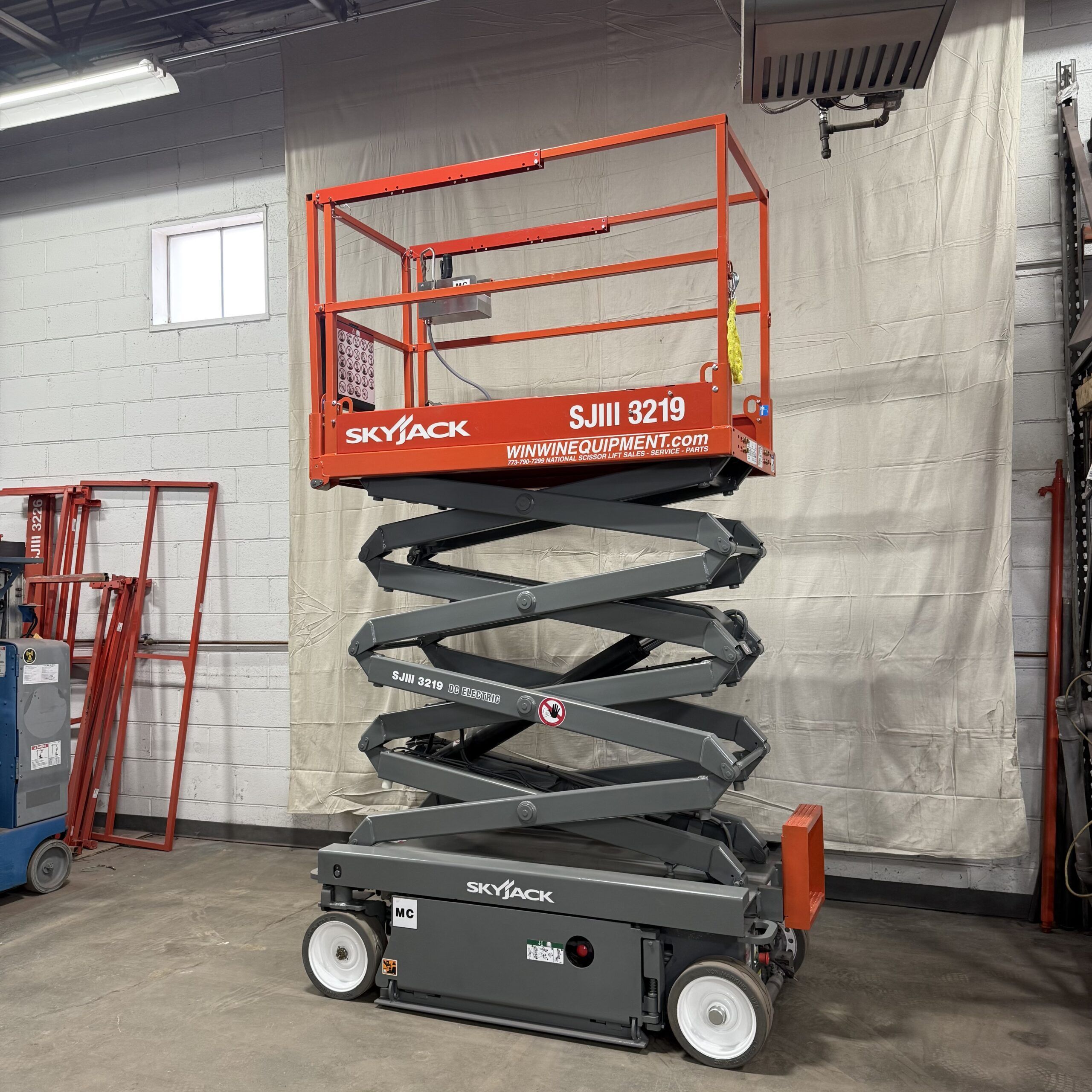

This 2017 fully refurbished Skyjack SJIII3219 electric scissor lift is a compact indoor access machine commonly used for facility maintenance, electrical work, warehouses, and commercial interiors. This unit currently shows approximately 215 hours. Each lift is refurbished to order by Win Win Equipment to deliver dependable performance and long-term reliability.
All refurbished equipment is completed to order with a typical lead time of 2–3 weeks from the time of payment. If you require equipment sooner, please contact Win Win Equipment to discuss expedited lead times or available equipment that may already be ready to ship.
The Skyjack SJIII3219 is a widely used 19-foot electric scissor lift designed for indoor environments where maneuverability and compact size matter. Its narrow frame and simple design make it a strong choice for contractors and facilities working in tight interior spaces.
Drivable at full height
Variable speed, front two wheel hydraulic drive
90° steering (zero inside turning radius)
Dual holding brakes
Proportional controls for drive & lift functions
3’ (0.91 m) Roll out extension deck
24V DC power source
Low voltage battery protection
30% Gradeability
Solid rubber, non-marking tires
Pothole protection system
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Forklift pockets and tie down/lift lugs
Relay based control system
Color coded and numbered wiring system
Telematics ready
Work Height – 25’ (7.62 m)
Raised Platform Height – 19’ (5.79 m)
Lowered Platform Height – 39” (0.99 m)
Overall Width – 32” (0.81 m)
Overall Length – 70” (1.78 m)
Stowed Height (Rails Up) – 78.5” (1.99 m)
Stowed Height (Rails Down) – OPT 64.5” (1.64 m)
Platform Width (Inside Dimension) – 26” (0.66 m)
Platform Length (Inside Dimension) – 64” (1.63 m)
Extension Deck (Roll Out) – 3’ (0.91 m)
Ground Clearance (Stowed) – 2.375” (6.03 cm)
Ground Clearance (raised) – 0.7” (1.78 cm)
Wheelbase – 55” (1.40 m)
Weight – 2,580 lbs (1,170 kg)
Gradeability – 30%
Turning Radius (Inside) – 0
Turning Radius (Outside) – 66” (1.68 m)
Lift Time (With Rated Load) – 25 sec
Lower Time (With Rated Load) – 29 sec
Drive Speed (Stowed) – 2 mph (3.2 km/h)
Drive Speed (Raised) – 0.7 mph (1.1 km/h)
Maximum Drive Height – Full Height
Capacity (Overall) – 550 lbs (249 kg)
Distributed Capacity (Main Platform) – 300 lbs (136 kg)
Distributed Capacity (Extension Deck) – 250 lbs (113 kg)
Local Floor Load (With Rated Load) – 110 psi (759 kPa)
Overall Floor Load (With Rated Load) – 201 psf (10 kPa)
Maximum # of Persons – 2
Wind Rating – 28 mph (12.5 m/s)
Tire Type – Solid, N/M
Tire Size – 12 x 4 x 8
This Skyjack SJIII3219 is fully refurbished to order at our facility in Addison, Illinois, and prepared for jobsite-ready use prior to delivery. Each refurbishment focuses on long-term reliability, safe operation, and consistent performance.
All refurbishment work is completed by our in-house technicians in Addison, IL. Additional refurbishment details and available options can be found on our full refurbishment program.
Standard refurbishment lead time is approximately 2–3 weeks from payment. Expedited timelines or alternate equipment options may be available upon request.
New batteries
New battery charger
New paint & decals
New tires
