$11,800.00

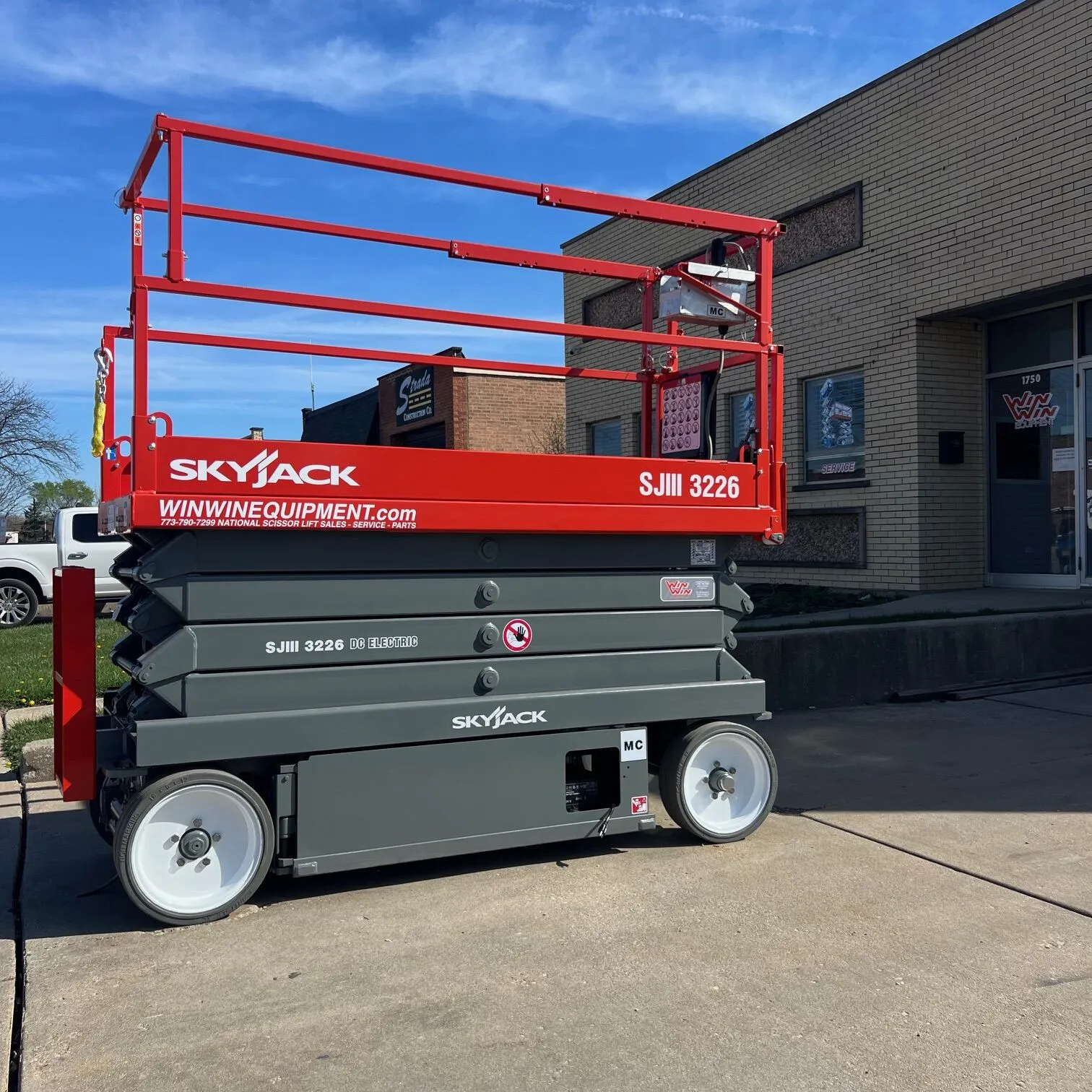

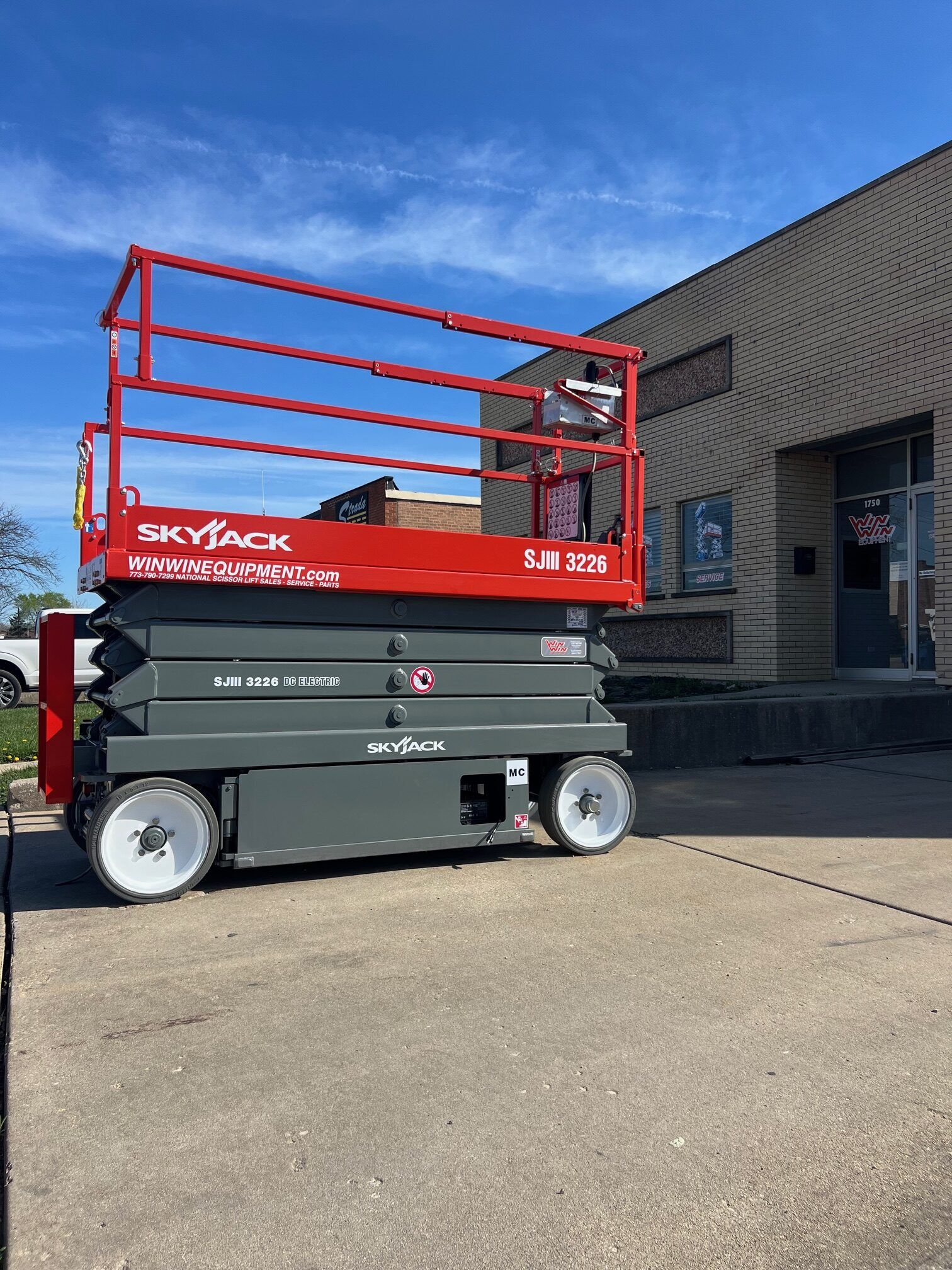

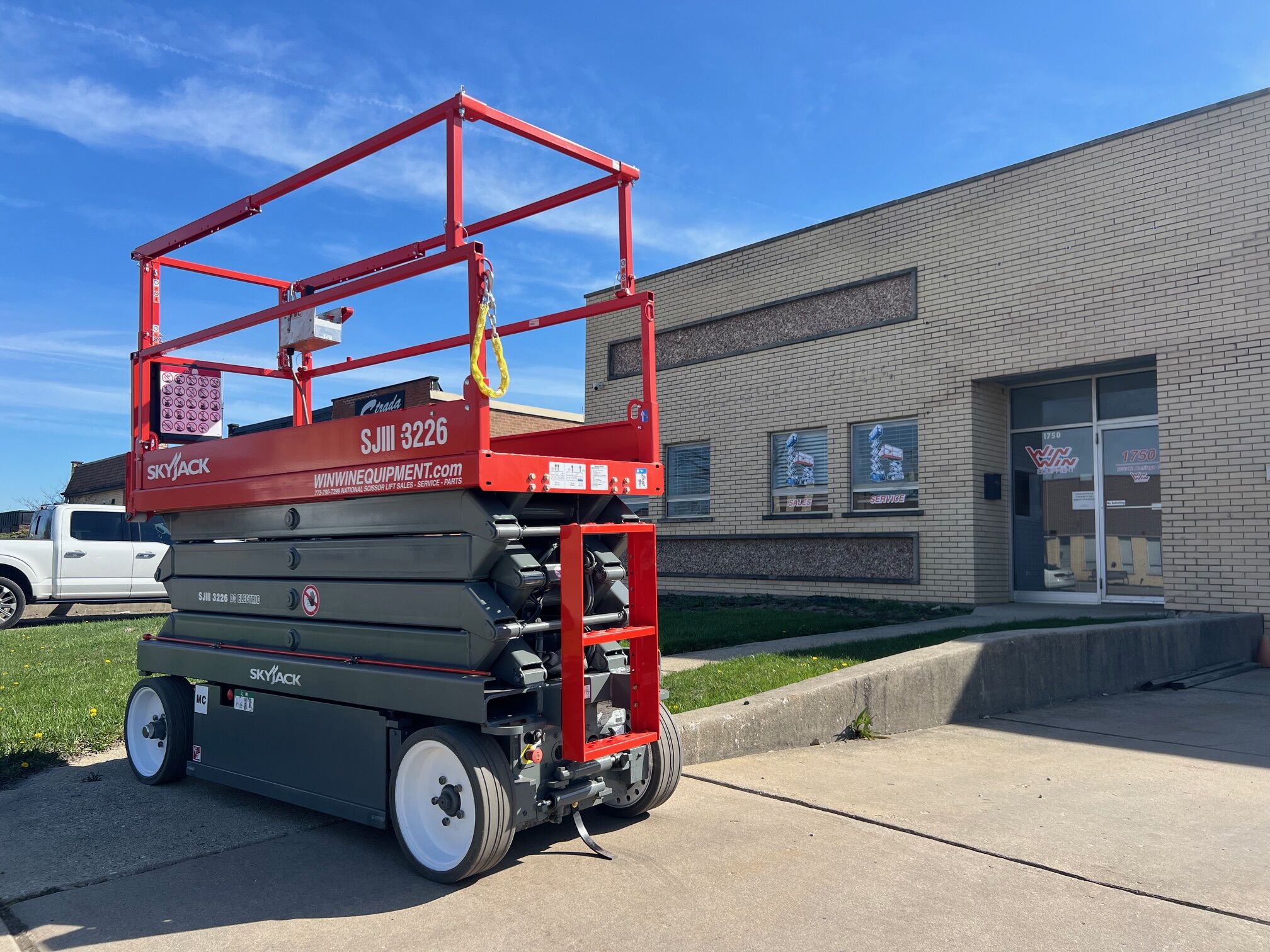

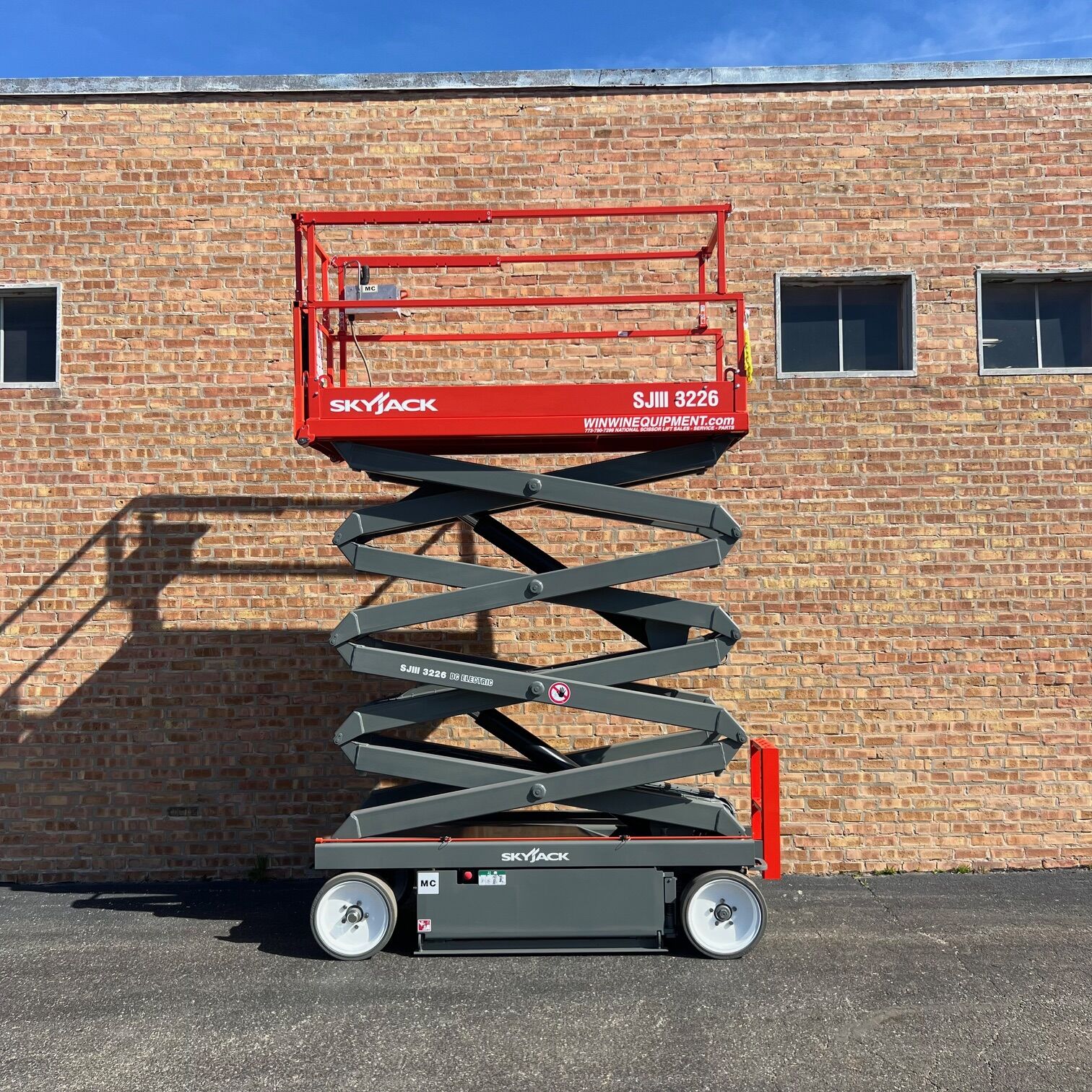

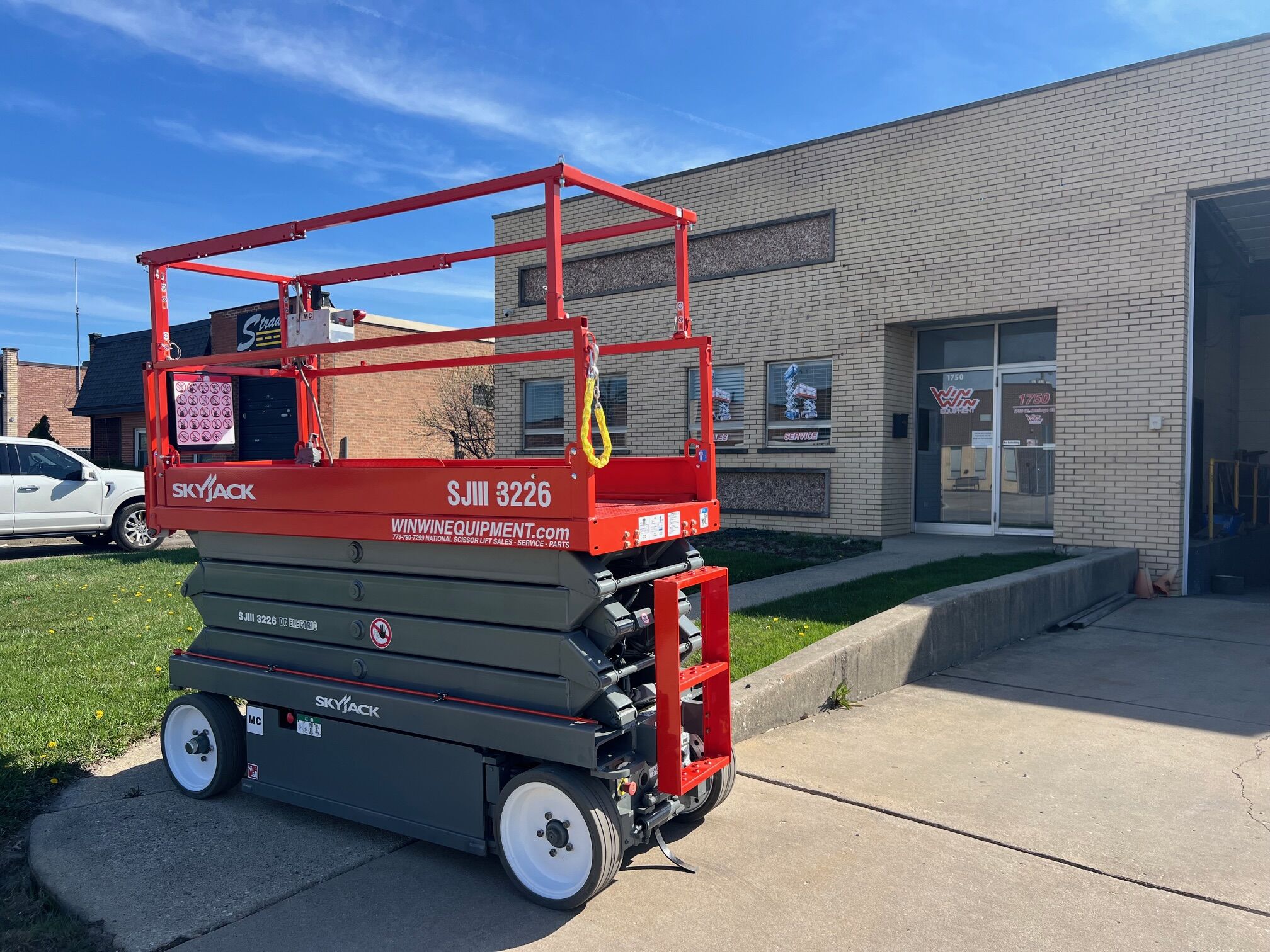

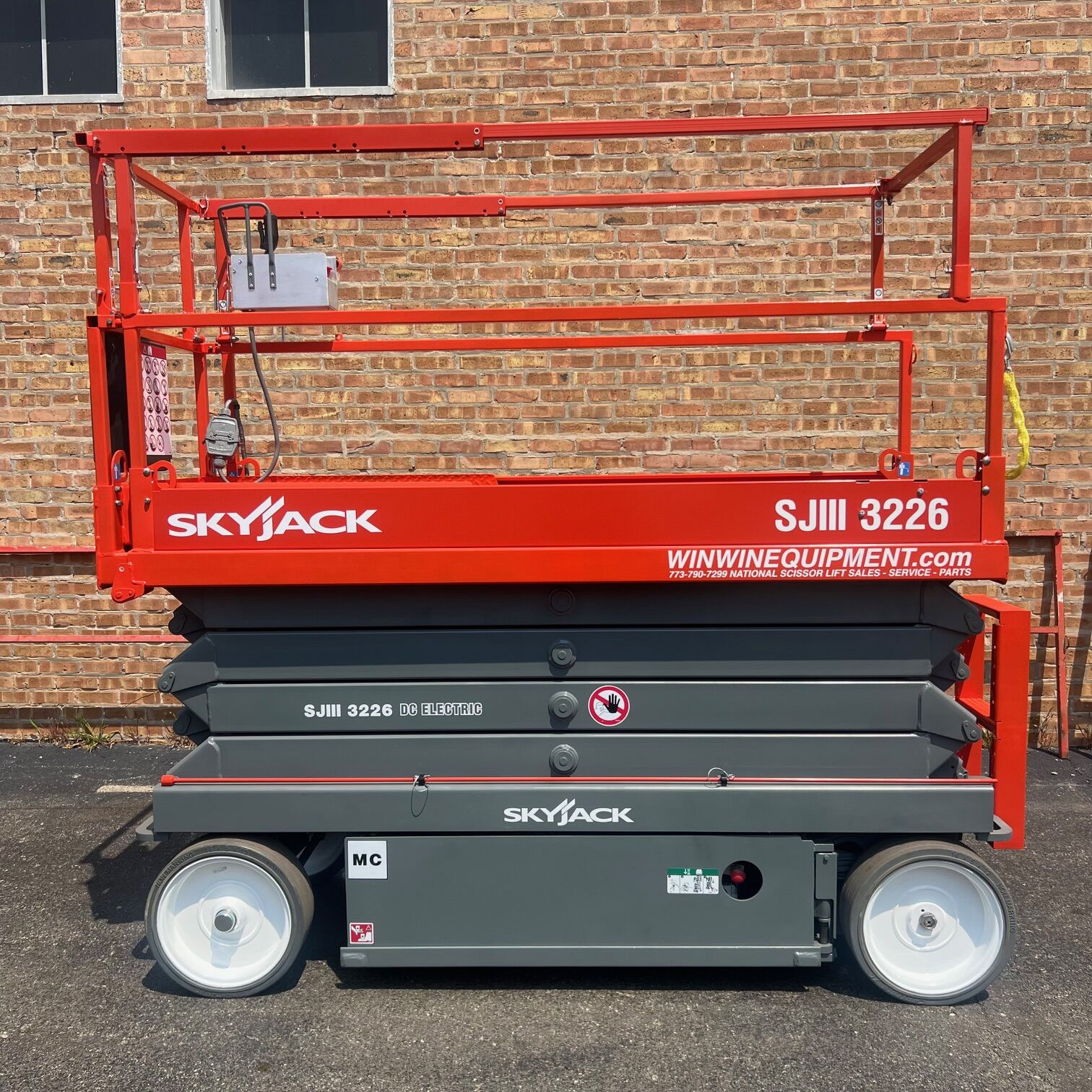

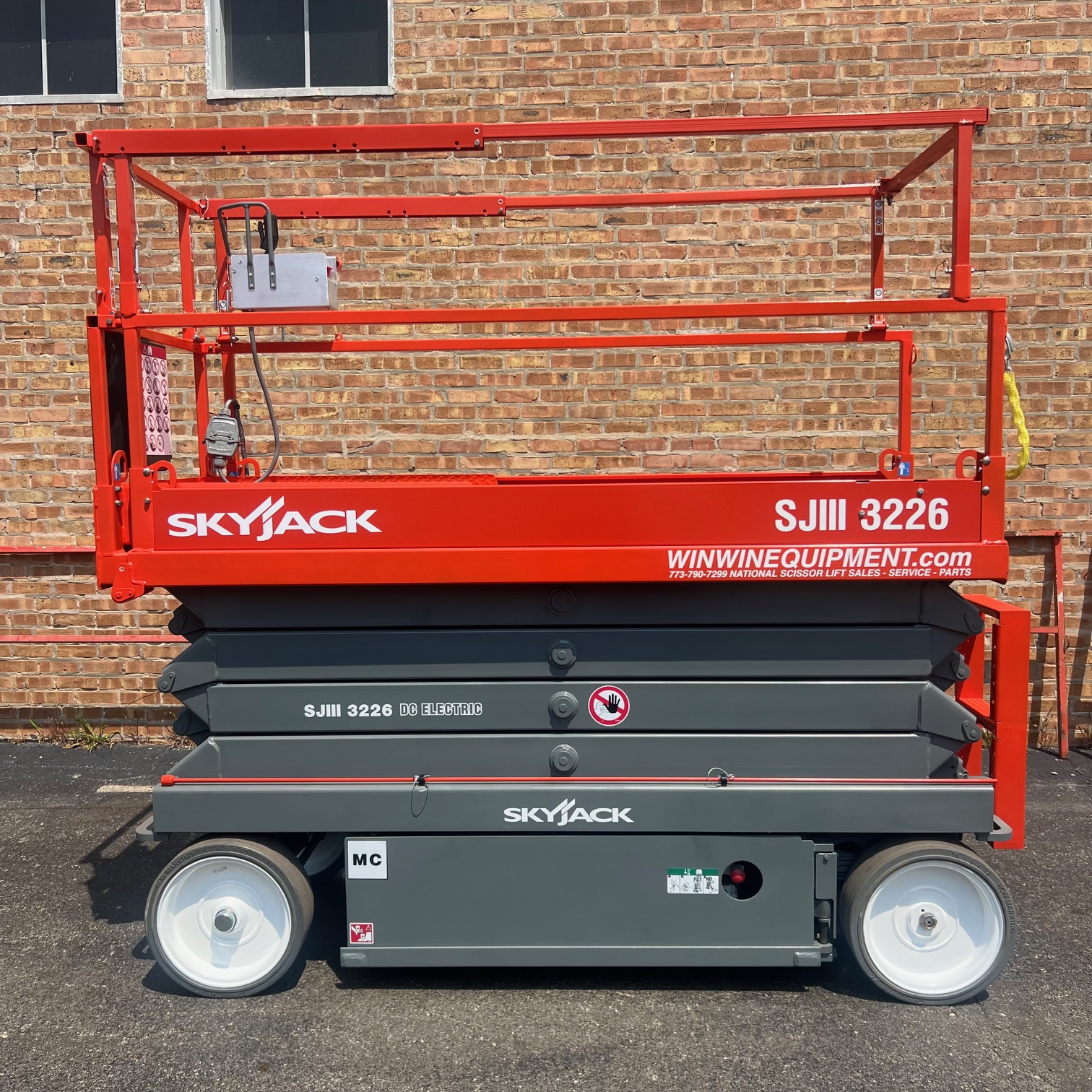

This 2018 fully refurbished Skyjack SJIII3226 electric scissor lift is a reliable indoor access solution designed for electrical work, facility maintenance, warehouses, and commercial construction. Each unit is refurbished to order by Win Win Equipment to ensure dependable performance and long-term value.
All refurbished equipment is completed to order with a typical lead time of 2–3 weeks from the time of payment. If you require equipment sooner, please contact Win Win Equipment to discuss expedited options or available inventory that may be ready to ship.
Drivable at full height
Variable speed, rear two wheel hydraulic drive
Dual holding brakes
Proportional controls for drive & lift functions
3’ (0.91 m) Roll out extension deck
24V DC power source
Low voltage battery protection
Up to 30% Gradeability
Solid rubber, non-marking tires
Pothole protection system
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Tilt alarm with drive & lift cut-out
All motion audible alarm
Lanyard attachment points
Operator horn
Hinged railing system (3226)
Forklift pockets and tie down/lift lugs
Relay based control system
Color coded and numbered wiring system
Work Height – 32’ (9.75 m)
Raised Platform Height – 26’ (7.92 m)
Lowered Platform Height – 45” (1.14 m)
Overall Width – 32” (0.81 m)
Overall Length – 91.5” (2.32 m)
Stowed Height (Rails Up) – 84.7” (2.15 m)
Stowed Height (Rails Down) – 70.6” (1.79 m)
Platform Width (Inside Dimension) – 28” (0.71 m)
Platform Length (Inside Dimension) – 84” (2.13 m)
Extension Deck (Roll Out) – 3’ (0.91 m)
Ground Clearance (Stowed) – 3.5” (8.89 cm)
Ground Clearance (raised) – 0.75” (1.90 cm)
Wheelbase – 69” (1.75 m)
Weight – 4,135 lbs (1,876 kg)
Grade ability – 30%
Turning Radius (Inside) – 50” (1.27 m)
Turning Radius (Outside) – 108” (2.74 m)
Lift Time (With Rated Load) – 56 sec
Lower Time (With Rated Load) – 42 sec
Drive Speed (Stowed) – 2.4 mph (3.9 km/h)
Drive Speed (Raised) – 0.7 mph (1.1 km/h)
Maximum Drive Height – Full Height
Capacity (Overall) – 500 lbs (227 kg)
Distributed Capacity (Main Platform) – 250 lbs (113 kg)
Distributed Capacity (Extension Deck) – 250 lbs (113 kg)
Local Floor Load (With Rated Load) – 130 psi (897 kPa)
Overall Floor Load (With Rated Load) – 235 psf (12 kPa)
Maximum # of Persons – 2
Wind Rating – 28 mph (12.5 m/s)
Tire Type – Solid, N/M
Tire Size – 16 x 5 x 12
Lead time for refurbished equipment is typically 2–3 weeks from payment. Expedited timelines or alternative equipment options may be available upon request.
Year: 2018 Hours: Low
Condition: Fully Refurbished
Refurbishment Type: Refurbished to order
